Easy Clip City ID Ø200-250
Derivations are elements that provide for connections to pipelines. Mechanical connections, which do not require the use of adhesives, are particularly suitable for new installations, for carrying out sewer connections or connections to carrier drains, for existing pipelines. In order to greatly simplify the creation of a new connection to a previously installed carrier drain. They are suitable for both waste water and sewage.

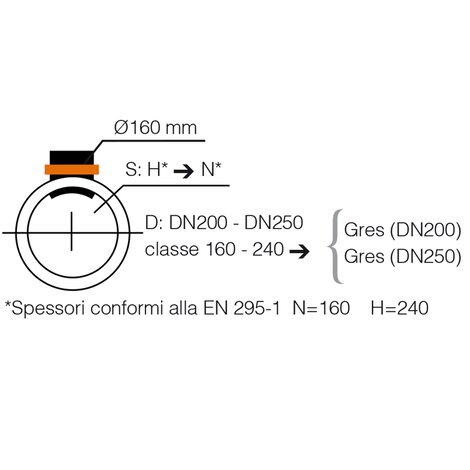

Mechanical saddle 90° for compact solid wall pipes/smooth pipes with small diameters.
Standard lip ring
Included one tube of lubricant: Camon scivolina Art. 6741500 jar gr. 150
GUIDE TO CHOOSE THE RIGHT MECHANICAL SADDLE EASY CLIP CALCULATOR
| note : | 1 spanner included in each box of 6 pcs. |

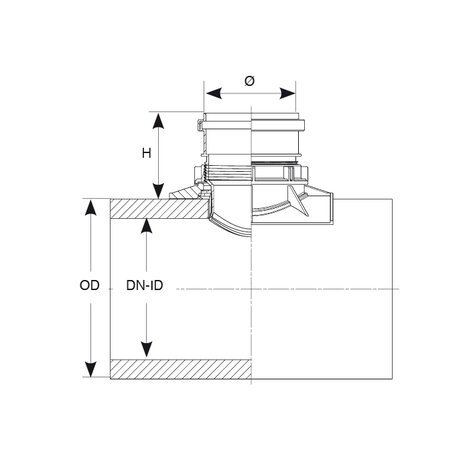

| Reference | DN (mm) | H (mm) | Ø (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Type |
|---|---|---|---|---|---|---|---|
| 1431658 tubo standard | (ID) 200 / (OD) 242 | 158 | 160 | 194 | 290 | 219 | Class (KN M2) 160 |
| 1431658 tubo extra | (ID) 200 / (OD) 254 | 152 | 160 | 194 | 290 | 219 | Class (KN M2) 240 |
| 1432658 tubo standard | (ID) 250 / (OD) 299 | 161 | 160 | 182 | 290 | 236 | Class (KN M2) 160 |
| 1432658 tubo standard | (ID) 250 / (OD) 318 | 151 | 160 | 182 | 290 | 236 | Class (KN M2) 240 |
