XIV
Solvent weld fittings - equal socket.

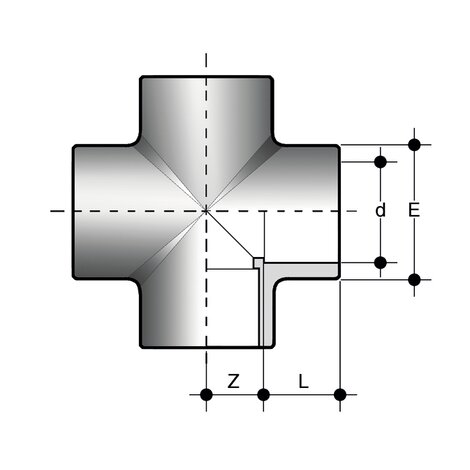

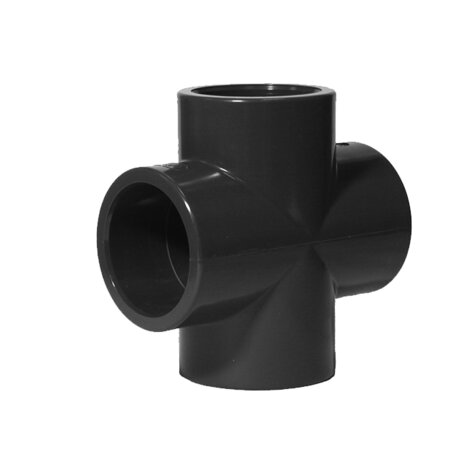

90° cross with solvent weld sockets.
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
| Codice | d | PN | E | L | Z | g | |
|---|---|---|---|---|---|---|---|
| XIV025 | H | 25 | 16 | 35 | 19 | 14 | 60 |
| XIV032 | H | 32 | 16 | 43 | 22 | 18 | 105 |
| XIV040 | H | 40 | 16 | 52 | 26 | 23 | 175 |
| XIV050 | H | 50 | 16 | 64 | 31 | 27 | 265 |
| XIV063 | H | 63 | 16 | 79 | 38 | 33,5 | 505 |
H: KIWA K5034 ND 10
