VXEIC - Easyfit 2-way ball valve DN 10:50

Easyfit 2-way ball valve with female ends for solvent welding, metric series.

FIP and Giugiaro Design designed and developed VXE Easyfit, the innovative True Union ball with union nut tightening control that permits simple and safe installation for reliable service in time. This valve is also equipped with the customisable Labelling System.

Main features:

  • Two position Easyfit ergonomic multifunctional handle with union nut tightening control which can be used to adjust ball seat carriers. Handle use is especially indicated for maintenance work where space is limited and hard to access
  • Customisable Labelling System: built-in LCE module on the handle made up of a transparent protection plug and customisable tag holder with LSE set (available as accessory). The customisation potential lets you identify the valve on the system according to specific needs
  • The PTFE ball seat system with locked carrier adjustable via Easyfit multifunctional handle or Easytorque adjustment kit (available as an accessory)
  • High surface finish valve stem with double O-Ring, produced in CNC work stations to achieve precise dimensional tolerance and increased reliability
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Go back Data sheet

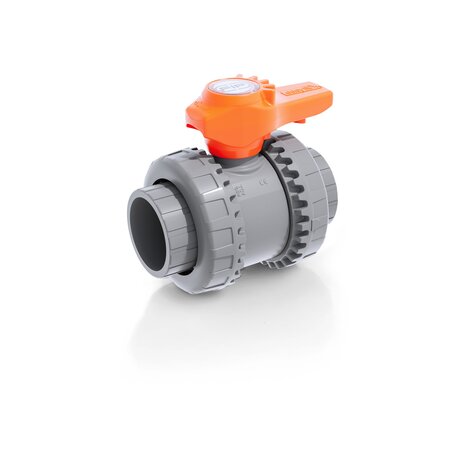

Render della valvola a sfera a 2 vie Easyfit VXEIC - DN 10:50 in PVC-C
Disegno tecnico della valvola a sfera VXEI, VXEL, VXEA DN 10:50
Render della valvola a sfera a 2 vie Easyfit VXEIC - DN 10:50 in PVC-C
Disegno tecnico della valvola a sfera VXEI, VXEL, VXEA DN 10:50

EPDM

Reference d DN PN B C C1 E H L Z g
VXEIC016E 16 10 16 49 64 44 54 82 16 50 180
VXEIC020E 20 15 16 49 64 44 54 82 16 50 175
VXEIC025E 25 20 16 62 78 55 63 91 19 53 260
VXEIC032E 32 25 16 71 87 60 72 103 22 59 365
VXEIC040E 40 32 16 82 102 72 85 120 26 68 565
VXEIC050E 50 40 16 92 109 76 100 139 31 77 795
VXEIC063E 63 50 16 110 133 94 118 174 38 98 1325

FKM

Reference d DN PN B C C1 E H L Z g
VXEIC016F 16 10 16 49 64 44 54 82 16 50 180
VXEIC020F 20 15 16 49 64 44 54 82 16 50 175
VXEIC025F 25 20 16 62 78 55 63 91 19 53 260
VXEIC032F 32 25 16 71 87 60 72 103 22 59 365
VXEIC040F 40 32 16 82 102 72 85 120 26 68 565
VXEIC050F 50 40 16 92 109 76 100 139 31 77 795
VXEIC063F 63 50 16 110 133 94 118 174 38 98 1325
  • Patented Easyfit system: innovative mechanism based on the principle of the bevel gear pair that controls valve union nut rotation during installation
  • Connection system for solvent weld and threaded joints
  • Valve material compatibility (PVC-C) and elastomer seal elements (EPDM or FKM), with water, drinking water and other food substances as per current regulations
  • Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for PVC-C injection moulding and European Directive 2014/68/EU (PED) compliant for pressurised equipment. ISO 9393 compliant test requirements
  • Fully interchangeable with previous VX Ergo series models
  • Option of disassembling downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish made in CNC work stations to achieve precise dimensional tolerance and high surface finish
