VVUFV - Angle seat valve DN 10:50

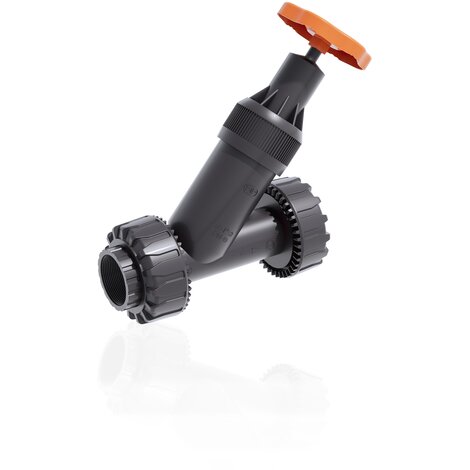

Angle seat valve with BSP threaded female union ends.
The VV angle seat valve is a shutting-off and regulating valve particularly suitable for clean fluids.

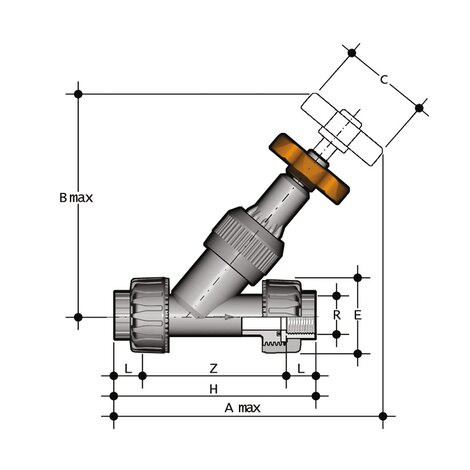

| Reference | R | DN | PN | A max | B max | C | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VVUFV012E | 1/2” | 15 | 16 | 173 | 124 | 60 | 55 | 143 | 15 | 113 | 251 |
| VVUFV034E | 3/4" | 20 | 16 | 197 | 146 | 60 | 66 | 160 | 16,3 | 127,4 | 413 |
| VVUFV100E | 1” | 25 | 16 | 223 | 173 | 70 | 75 | 183 | 19,1 | 144,8 | 621 |
| VVUFV114E | 1"1/4 | 32 | 10 | 258 | 195 | 85 | 87 | 214 | 21,4 | 171,2 | 903 |
| VVUFV112E | 1"1/2 | 40 | 10 | 295 | 222 | 105 | 100 | 235 | 21,4 | 192,2 | 1320 |
| VVUFV200E | 2” | 50 | 10 | 359 | 269 | 130 | 120 | 285 | 25,7 | 233,6 | 2238 |
| VVUFV038E | 3/8” | 10 | 16 | 170 | 124 | 60 | 55 | 135 | 11,4 | 112,2 | 238 |
- Connection system for solvent weld, threaded and flanged joints
- Can be installed in any position
- No metal parts in contact with the fluid
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- Can be maintained with the valve body installed
