VKRLV - DUAL BLOCK® regulating ball valve DN 10:50

DUAL BLOCK® regulating ball valve with BS plain socket ends for solvent welding.

The VKR DUAL BLOCK® valve combines high reliability and safety aspects typical of VKD full bore ball valves with the new flow adjustment function with typical linear curve that meets the most stringent needs typical of industrial applications.

Main features:

  • HIPVC ergonomic multifunctional handle with position indicator and tool to adjust the ball seat carrier
  • Flow direction and opening angle indication plate with graduated scale with 5° detail for clear and accurate readings
  • 90° operating angle that permits the use of standard quarter turn actuators
  • The patented ball design provides linear flow adjustment throughout its range of operation even when the valve is open just a few degrees and guarantees minimum pressure drops
  • Patented DUAL BLOCK® system: prevents union nuts from loosening even under extreme operating conditions: e.g. vibration or thermal expansion
Go back Data sheet
Render della valvola di regolazione a sfera DUAL BLOCK® VKRLV - DN 10:50 in PVC-U
VKRLV - DUAL BLOCK® regulating ball valve DN 10:50
Render della valvola di regolazione a sfera DUAL BLOCK® VKRLV - DN 10:50 in PVC-U
VKRLV - DUAL BLOCK® regulating ball valve DN 10:50

EPDM

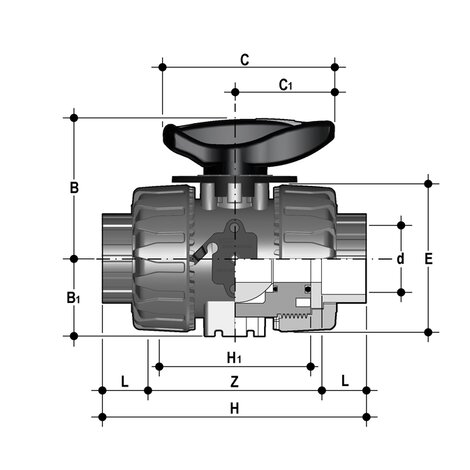

Reference d DN PN B B1 C C1 E H H1 L Z g
VKRLV038E 3/8” 10 16 54 29 67 40 54 103 65 14,5 74 210
VKRLV012E 1/2” 15 16 54 29 67 40 54 103 65 16,5 70 205
VKRLV034E 3/4” 20 16 65 34,5 85 49 65 115 70 19 77 335
VKRLV100E 1” 25 16 69,5 39 85 49 73 128 78 22,5 83 433
VKRLV114E 1” 1/4 32 16 82,5 46 108 64 86 146 88 26 94 703
VKRLV112E 1” 1/2 40 16 89 52 108 64 98 164 93 30 104 925
VKRLV200E 2” 50 16 108 62 134 76 122 199 111 36 127 1647

FKM

Reference d DN PN B B1 C C1 E H H1 L Z g
VKRLV038F 3/8” 10 16 54 29 67 40 54 103 65 14,5 74 210
VKRLV012F 1/2” 15 16 54 29 67 40 54 103 65 16,5 70 205
VKRLV034F 3/4” 20 16 65 34,5 85 49 65 115 70 19 77 335
VKRLV100F 1” 25 16 69,5 39 85 49 73 128 78 22,5 83 433
VKRLV114F 1” 1/4 32 16 82,5 46 108 64 86 146 88 26 94 703
VKRLV112F 1” 1/2 40 16 89 52 108 64 98 164 93 30 104 925
VKRLV200F 2” 50 16 108 62 134 76 122 199 111 36 127 1647
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double connection key to ball
  • Integrated bracket for valve anchoring
  • Ball seat carrier can be adjusted using the Easytorque adjustment kit
  • Actuation option: version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position
  • Valve suitable for carrying fluids that are clean and free of suspended particles
