VKDIC - DUAL BLOCK® 2-way ball valve DN 10:50

DUAL BLOCK® 2-way ball valve with female ends for solvent welding, metric series.

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications.

Main features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Go back Data sheet

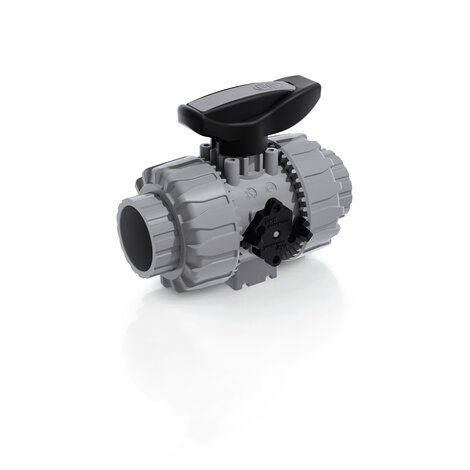

Render della valvola a sfera a due vie DUAL BLOCK® VKDIC - DN 10:50 in PVC-C
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 10:50
Render della valvola a sfera a due vie DUAL BLOCK® VKDIC - DN 10:50 in PVC-C
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 10:50

EPDM

Reference d DN PN B B1 C C1 E H H1 L Z g
VKDIC016E 16 10 16 54 29 67 40 54 103 65 14 75 234
VKDIC020E 20 15 16 54 29 67 40 54 103 65 16 71 223
VKDIC025E 25 20 16 65 34,5 85 49 65 115 70 19 77 358
VKDIC032E 32 25 16 69,5 39 85 49 73 128 78 22 84 476
VKDIC040E 40 32 16 82,5 46 108 64 86 146 88 26 94 753
VKDIC050E 50 40 16 89 52 108 64 98 164 93 31 102 1007
VKDIC063E 63 50 16 108 62 134 76 122 199 111 38 123 1717

EPDM

Reference d DN PN B B1 C C1 E H H1 L Z g
VKDIC016E0LF 16 10 16 54 29 67 40 54 103 65 14 75 234
VKDIC020E0LF 20 15 16 54 29 67 40 54 103 65 16 71 223
VKDIC025E0LF 25 20 16 65 34,5 85 49 65 115 70 19 77 358
VKDIC032E0LF 32 25 16 69,5 39 85 49 73 128 78 22 84 476
VKDIC040E0LF 40 32 16 82,5 46 108 64 86 146 88 26 94 753
VKDIC050E0LF 50 40 16 89 52 108 64 98 164 93 31 102 1007
VKDIC063E0LF 63 50 16 108 62 134 76 122 199 111 38 123 1717

EPDM

Reference d DN PN B B1 C C1 E H H1 L Z g
VKDIC016E0SF 16 10 16 54 29 67 40 54 103 65 14 75 234
VKDIC020E0SF 20 15 16 54 29 67 40 54 103 65 16 71 223
VKDIC025E0SF 25 20 16 65 34,5 85 49 65 115 70 19 77 358
VKDIC032E0SF 32 25 16 69,5 39 85 49 73 128 78 22 84 476
VKDIC040E0SF 40 32 16 82,5 46 108 64 86 146 88 26 94 753
VKDIC050E0SF 50 40 16 89 52 108 64 98 164 93 31 102 1007
VKDIC063E0SF 63 50 16 108 62 134 76 122 199 111 38 123 1717

FKM

Reference d DN PN B B1 C C1 E H H1 L Z g
VKDIC016F 16 10 16 54 29 67 40 54 103 65 14 75 234
VKDIC020F 20 15 16 54 29 67 40 54 103 65 16 71 223
VKDIC025F 25 20 16 65 34,5 85 49 65 115 70 19 77 358
VKDIC032F 32 25 16 69,5 39 85 49 73 128 78 22 84 476
VKDIC040F 40 32 16 82,5 46 108 64 86 146 88 26 94 753
VKDIC050F 50 40 16 89 52 108 64 98 164 93 31 102 1007
VKDIC063F 63 50 16 108 62 134 76 122 199 111 38 123 1717

FKM

Reference d DN PN B B1 C C1 E H H1 L Z g
VKDIC016F0LF 16 10 16 54 29 67 40 54 103 65 14 75 234
VKDIC020F0LF 20 15 16 54 29 67 40 54 103 65 16 71 223
VKDIC025F0LF 25 20 16 65 34,5 85 49 65 115 70 19 77 358
VKDIC032F0LF 32 25 16 69,5 39 85 49 73 128 78 22 84 476
VKDIC040F0LF 40 32 16 82,5 46 108 64 86 146 88 26 94 753
VKDIC050F0LF 50 40 16 89 52 108 64 98 164 93 31 102 1007
VKDIC063F0LF 63 50 16 108 62 134 76 122 199 111 38 123 1717

FKM

Reference d DN PN B B1 C C1 E H H1 L Z g
VKDIC016F0SF 16 10 16 54 29 67 40 54 103 65 14 75 234
VKDIC020F0SF 20 15 16 54 29 67 40 54 103 65 16 71 223
VKDIC025F0SF 25 20 16 65 34,5 85 49 65 115 70 19 77 358
VKDIC032F0SF 32 25 16 69,5 39 85 49 73 128 78 22 84 476
VKDIC040F0SF 40 32 16 82,5 46 108 64 86 146 88 26 94 753
VKDIC050F0SF 50 40 16 89 52 108 64 98 164 93 31 102 1007
VKDIC063F0SF 63 50 16 108 62 134 76 122 199 111 38 123 1717
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
