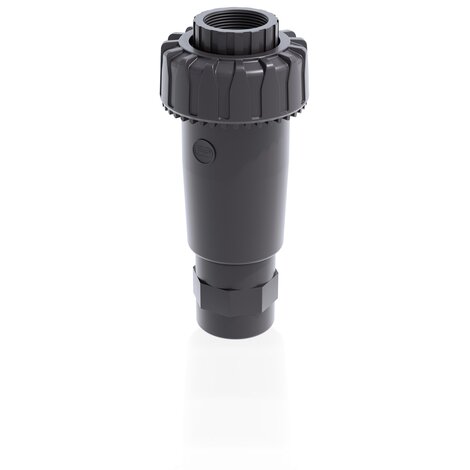

VAFV - Air release valve DN 15:50
Air release valve with BSP threaded female ends.
The purpose of the VA air release is to eliminate any air entering the pipe with the liquid.

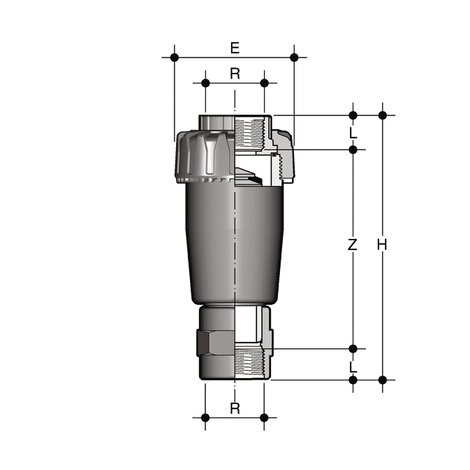

| Reference | R | DN | PN | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|
| VAFV012E | 1/2” | 15 | 16 | 55 | 124 | 15 | 94 | 120 |
| VAFV034E | 3/4” | 20 | 16 | 66 | 149 | 16,3 | 116,4 | 205 |
| VAFV100E | 1” | 25 | 16 | 75 | 175 | 19,1 | 136,8 | 360 |
| VAFV112E | 1” 1/2 | 40 | 16 | 100 | 209 | 21,4 | 166,2 | 670 |
| VAFV114E | 1” 1/4 | 32 | 16 | 87 | 200 | 21,4 | 157,2 | 475 |
| VAFV200E | 2” | 50 | 16 | 122 | 248 | 25,7 | 196,6 | 1130 |
- Connection system for solvent weld and threaded joints
- No metal parts in contact with the fluid
- Can be used as a vacuum breaker valve when installed with the nut at the bottom
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- Can be maintained with the valve body installed
