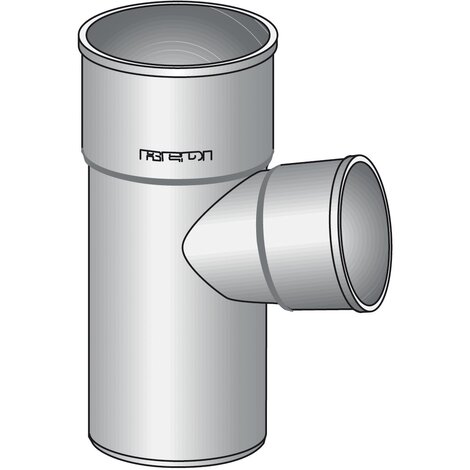

Unequal branch 87°30’ M/F
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

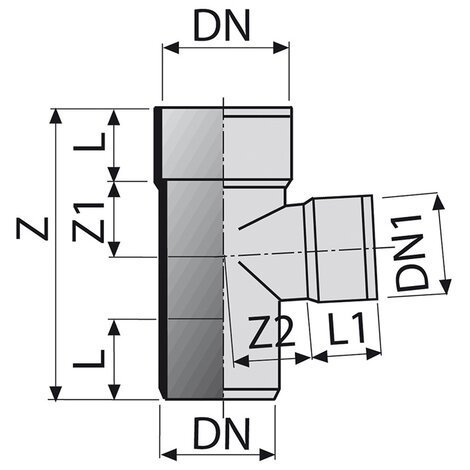

| Reference | DN1 (mm) | Z (mm) | Z1 (mm) | Z2 (mm) | L (mm) | DN (mm) | |
|---|---|---|---|---|---|---|---|
| 035270M | 50 | 168 | 40 | 52 | 45 | 75 | |
| 0841002 | 40 | 36 | 170 | 44 | 53 | 100 | |
| 0843002 | 50 | 40 | 174 | 44 | 53 | 100 | upon request |
| 0845002 | 63 | 41 | 175 | 44 | 53 | 100 | upon request |
| 035310M | 50 | 198 | 50 | 71 | 59 | 110 | |
| 035710M | 75 | 210 | 50 | 71 | 59 | 110 | |
| 0352002 | 160 | 380 | 110 | 132 | 86 | 200 | upon request |
