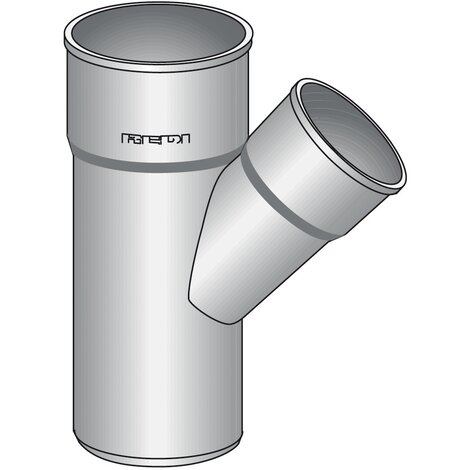

Unequal Branch 45° M/F
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

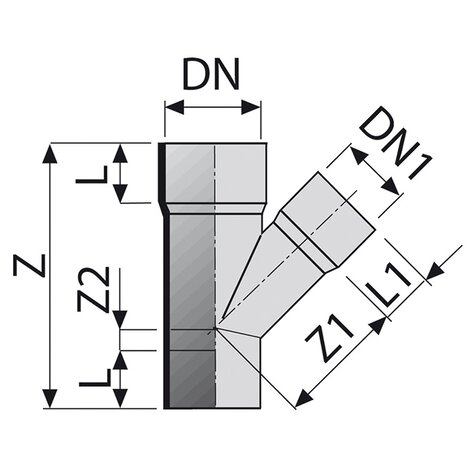

| Reference | DN1 (mm) | Z (mm) | Z1 (mm) | Z2 (mm) | L (mm) | L1 (mm) | DN (mm) | |
|---|---|---|---|---|---|---|---|---|
| 031270M | 50 | 180 | 87 | 8 | 45 | 40 | 75 | |
| 083100M | 40 | 180 | 100 | 15 | 53 | 36 | 100 | |
| 083300M | 50 | 193 | 104 | 8 | 53 | 40 | 100 | |
| 083500M | 63 | 208 | 107 | 3 | 56 | 38 | 100 | upon request |
| 031310M | 50 | 206 | 15 | 114 | 55 | 40 | 110 | |
| 031510M | 75 | 237 | 1 | 122 | 59 | 45 | 110 | |
| 031720M | 100 | 294 | 145 | 14 | 70 | 62 | 125 | |
| 031920M | 110 | 298 | 19 | 150 | 62 | 56 | 125 | upon request |
| 0311602 | 110 | 325 | 2 | 175 | 72 | 55 | 160 | |
| 0313602 | 125 | 346 | 12 | 182 | 74 | 62 | 160 | |
| 0313502 | 110 | 360 | 17 | 200 | 86 | 56 | 200 | |
| 0313702 | 125 | 380 | 7 | 210 | 86 | 60 | 200 | upon request |
| 0312002 | 160 | 430 | 18 | 230 | 86 | 74 | 200 | |
| 0314002 | 160 | 482 | 3 | 260 | 103 | 72 | 250 |
