TLV
Fittings according to British standard - equal socket.

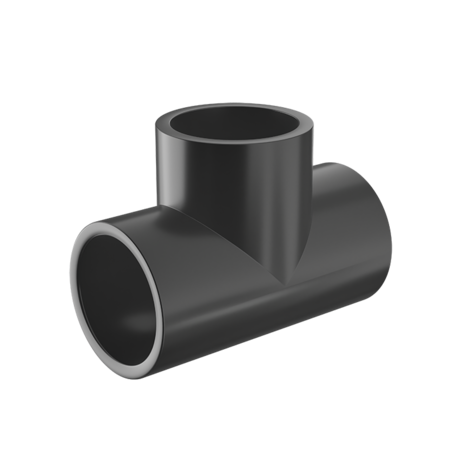

90° Tee with solvent weld sockets.
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.

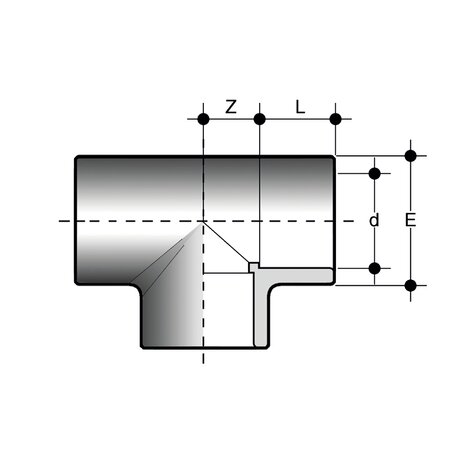

| Reference | d | PN | Class | E | L | Z | g |
|---|---|---|---|---|---|---|---|
| TLV012 | 1/2" | 15 | E | 27 | 16,5 | 10,5 | 26 |
| TLV600 | 6" | 12 | D | 194,5 | 90 | 90 | 4400 |
| TLV400 | 4" | 15 | E | 131 | 63 | 59 | 1260 |
| TLV300 | 3" | 15 | E | 108 | 51 | 48 | 970 |
| TIV075 | 2"1/2 | 15 | E | 90 | 44 | 40,5 | 560 |
| TLV200 | 2" | 15 | E | 76 | 38 | 33,5 | 495 |
| TLV112 | 1"1/2 | 15 | E | 61 | 31 | 27 | 257 |
| TLV114 | 1"1/4 | 12 | D | 50 | 26 | 22 | 90 |
| TLV100 | 1" | 15 | E | 41 | 22,5 | 17 | 55 |
| TLV034 | 3/4" | 15 | E | 33 | 19,5 | 13,5 | 30 |
| TLV800 | 8" | 12 | D | 257 | 115,5 | 116 | 10500 |
