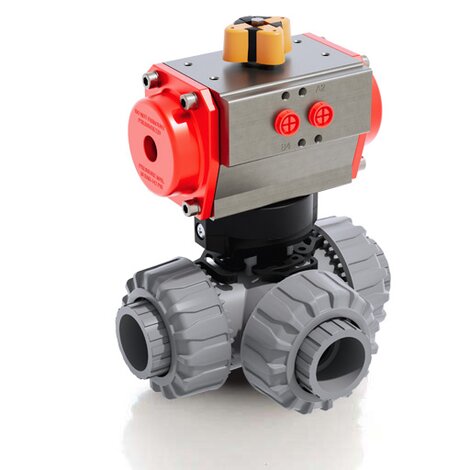

TKDIC/CP SA - Pneumatically actuated DUAL BLOCK® 3-way ball valve DN 10:50

3 way DUAL BLOCK® ball valve with female ends for solvent welding, metric series with pneumatic actuator, Single-acting function. "T" ball, configuration 1.

FIP has developed a TKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. TKD is a True Union diverting and mixing ball valve that meets the most stringent needs required in industrial applications.

In addition to the manually actuated version, TKD is also available in TKD/CE electrically actuated and TKD/CP pneumatically actuated configurations. Actuators are firmly connected to the valve by the special FIP PowerQuick modules fully made of PP-GR technopolymer. TKD/CE and TKD/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products.

Main features:

  • Electric actuator constructed according to FIP specifications; with plastic shell and standard emergency override. Available with voltages from 12 to 240V
  • Rack & pinion type pneumatic actuator constructed according to FIP specifications: fully protected against weather corrosion available in double-acting (DA) or simple-acting normally closed (NC) or normally open (NO) versions. Three different positions according to 2 configurations are possible with T ball: 0°-90°-180° and 0°-90°-270°
  • High surface finish stem with double O-Ring. The double connection key system guarantees solid and reliable actuator torque transmission to the ball
  • Easy to install PowerQuick module for pneumatic or electric actuator fully made of highly robust technopolymer
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Ball shutter high surface finish with floating type full passage with T or L port
Go back Data sheet

EPDM

Reference d DN PN E H H1 L Z Ra B B1 E1 E2
TKDICSA016E1 16 10 16 54 118 80 14 90 G1/8" 145 29 138 75
TKDICSA020E1 20 15 16 54 118 80 16 86 G1/8" 145 29 138 86
TKDICSA025E1 25 20 16 65 145 100 19 107 G1/4" 156.5 34.5 155.5 86
TKDICSA032E1 32 25 16 73 160 110 22 116 G1/4" 161 39 155.5 86
TKDICSA040E1 40 32 16 86 188.5 131 26 136.5 G1/4" 194 46 155.5 86
TKDICSA050E1 50 40 16 98 219 148 31 157 G1/4" 200 52 155.5 86
TKDICSA063E1 63 50 16 122 266.5 179 38 190.5 G1/4" 217 62 210 94

FKM

Reference d DN PN E H H1 L Z Ra B B1 E1 E2
TKDICSA016F1 16 10 16 54 118 80 14 90 G1/8" 145 29 138 75
TKDICSA020F1 20 15 16 54 118 80 16 86 G1/8" 145 29 138 86
TKDICSA025F1 25 20 16 65 145 100 19 107 G1/4" 156.5 34.5 155.5 86
TKDICSA032F1 32 25 16 73 160 110 22 116 G1/4" 161 39 155.5 86
TKDICSA040F1 40 32 16 86 188.5 131 26 136.5 G1/4" 194 46 155.5 86
TKDICSA050F1 50 40 16 98 219 148 31 157 G1/4" 200 52 155.5 86
TKDICSA063F1 63 50 16 122 266.5 179 38 190.5 G1/4" 217 62 210 94
  • Joint system for solvent welding (PVC-U and PVC-C only), for welding (PP-H only), for threading
  • Patented SEAT STOP® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
  • Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
  • Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of disassembling downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double connection key to the ball, equipped with visual ball position indicator for correct handle installation
  • Integrated bracket for valve anchoring
  • Possibility of installing pneumatic and/or electric actuators thanks to the robust anchor tower for easy and quick automation using the PowerQuick module
