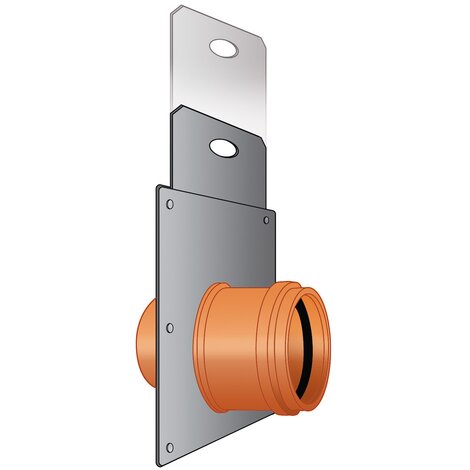

STOP knife valves

Sample applications: pipelines (pressure low), agriculture, fish farming, rain water recycling, water playgrounds, horticulture and landscaping.
Use : Sample applications: pipelines (pressure low), agriculture, fish farming, rain water recycling, water playgrounds, horticulture and landscaping.
Go back Data sheet
STOP knife valves
STOP knife valves
STOP knife valves
STOP knife valves

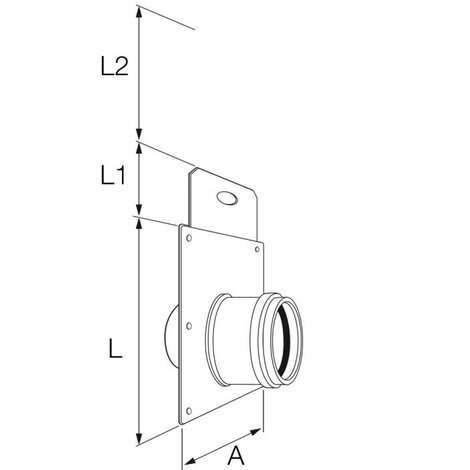

Reference Colour A (mm) DN (mm) L (mm) L1 (mm) L2 (mm) Material
P5510G1 Grey/Orange 172 110 300 74 110 PVC
P5512G1 Grey/Orange 194 125 311 82 142 PVC
P5516G1 Grey/Orange 225 160 335 95 180 PVC
P5520G1 Grey/Orange 264 200 374 100 219 PVC
P5525G1 Grey/Orange 330 250 430 110 250 PVC
P5530G1 Grey/Orange 425 315 540 115 340 PVC
P5540G1 Grey/Orange 510 400 583 110 450 PVC
