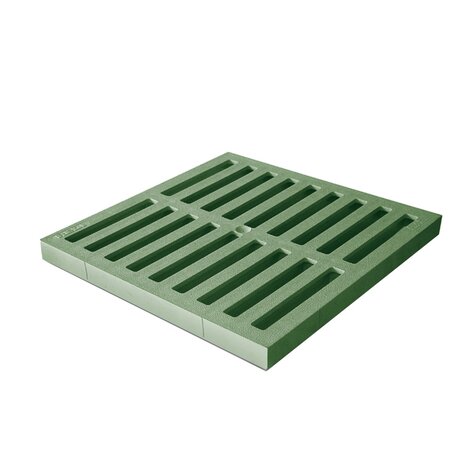

PVC Pedestrian grill
SURFACE DRAINAGE SYSTEMS, CATCH BASINS, COVERS AND GRILLS
Suitable for the garden and pedestrial areas
Material: PVC.
Installation: the grate perfectly fits the REDI catch pit. Always use a frame when covering concrete catch basin or in case of special applications.
Durability: PVC specifications and structure design give this product a great resistance against atmospheric agents and ageing and ensure dimensional stability in time.
Tested by Istituto Giordano.
| Reference | RAL | A (mm) | H1 (mm) | Dim (mm) | kN |
|---|---|---|---|---|---|
| E72200V | 6005 | 187 | 25 | 200x200 | 32 |
| E72300V | 6005 | 284 | 30 | 300x300 | 20 |
| E25700V | 6005 | 331 | 30 | 350x350 | 85 |
| E72400V | 6005 | 383 | 35 | 400x400 | 26 |
| E72450V | 6005 | 432 | 40 | 450x450 | 27 |
| E72550V | 6005 | 539 | 45 | 550x550 | 21 |
