NRFV
Threaded fittings - reducers.

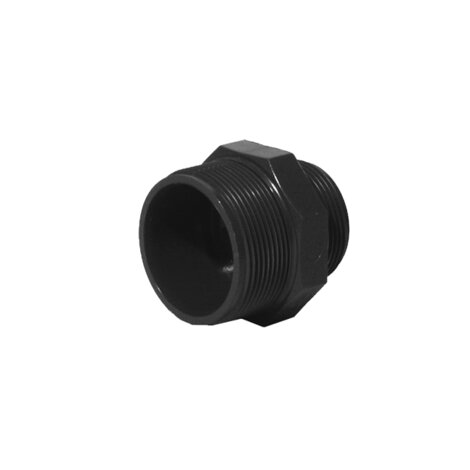

Reducing barrel nipple with BSP threaded male ends.
Series of fittings for pipes conveying fluids under pressure with threaded joints.

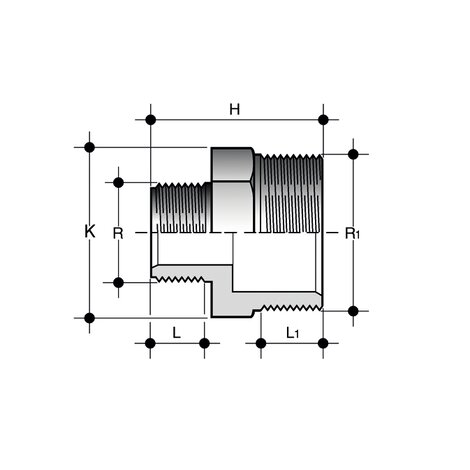

| Reference | R[5:1] x R | PN | H | K | L | L1 | g |
|---|---|---|---|---|---|---|---|
| NRFV034012 | 3/4" x 1/2" | 16 | 43 | 30 | 15 | 16,3 | 15 |
| NRFV100034 | 1" x 3/4" | 16 | 47 | 36 | 16,3 | 19,1 | 25 |
| NRFV112114 | 1"1/2 x 1"1/4 | 16 | 60 | 50 | 21,4 | 21,4 | 60 |
| NRFV114100 | 1"1/4 x 1" | 16 | 54 | 46 | 19,1 | 21,4 | 40 |
| NRFV200112 | 2" x 1"1/2 | 16 | 62 | 65 | 21,4 | 25,7 | 90 |
| NRFV212200 | 2"1/2 x 2" | 16 | 72 | 80 | 25,7 | 30,2 | 155 |
| NRFV300212 | 3" x 2"1/2 | 16 | 82 | 95 | 30,2 | 33,3 | 240 |
| NRFV400300 | 4" x 3" | 16 | 91 | 120 | 33,3 | 39,3 | 357 |
