NFV
Threaded fittings - equal socket.

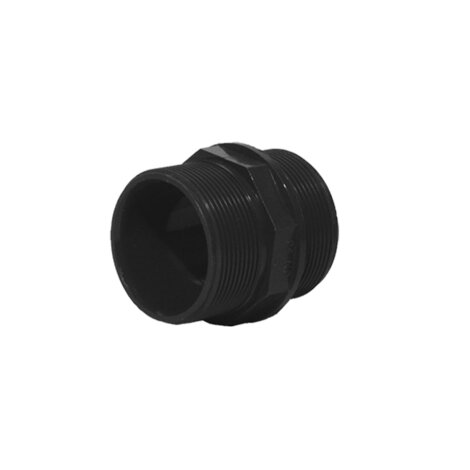

Barrel nipple with BSP threaded male ends.
Series of fittings for pipes conveying fluids under pressure with threaded joints.

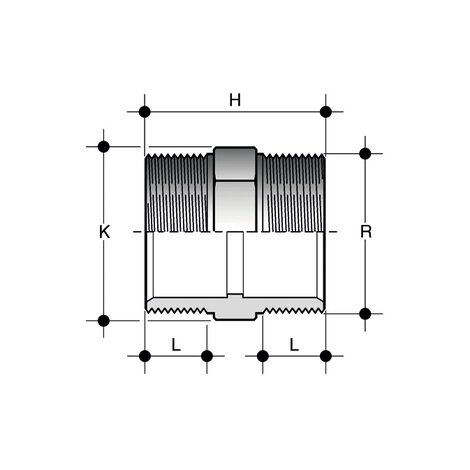

| Reference | R | PN | E | H | K | L | g |
|---|---|---|---|---|---|---|---|
| NFV038 | 3/8" | 16 | 22 | 33 | 19 | 11,4 | 5 |
| NFV012 | 1/2" | 16 | 28 | 42 | 24 | 15 | 10 |
| NFV034 | 3/4" | 16 | 34 | 44 | 30 | 16,3 | 20 |
| NFV100 | 1" | 16 | 40 | 50 | 36 | 19,1 | 30 |
| NFV114 | 1"1/4 | 16 | 52 | 58 | 46 | 21,4 | 45 |
| NFV112 | 1"1/2 | 16 | 58 | 58 | 50 | 21,4 | 63 |
| NFV200 | 2" | 16 | 70 | 66 | 65 | 25,7 | 105 |
| NFV212 | 2"1/2 | 16 | - | 78 | 80 | 30,2 | 175 |
| NFV300 | 3" | 16 | - | 85 | 95 | 33,3 | 245 |
| NFV400 | 4" | 16 | - | 90 | 120 | 39,3 | 348 |
