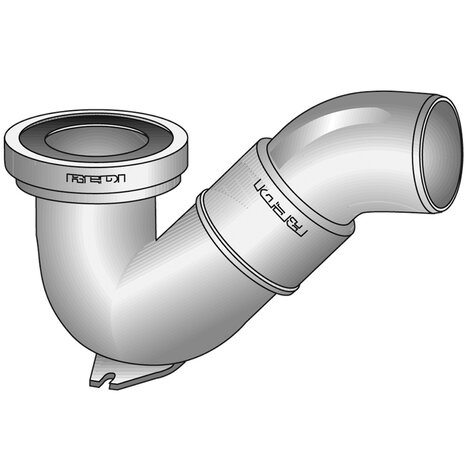

Low backed gully with bend
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

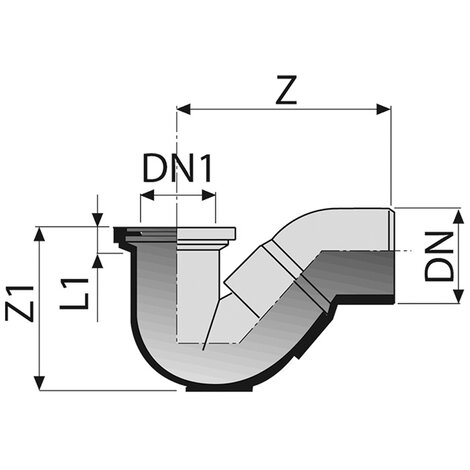

| Reference | Type | DN1 (mm) | Z (mm) | Z1 (mm) | L1 (mm) | DN (mm) | Version |
|---|---|---|---|---|---|---|---|
| 1771402 | Bend 45° | 95÷135 | 280 | 214 | 33 | 110 | - |
| 17710A2 | Bend 45° + Bend 90° | 95÷135 | 280 | 214 | 33 | 100 | upon request |
| 17714A2 | Bend 45° + Bend 90° | 95÷135 | 200 | 214 | 33 | 110 | upon request |
| 17714C2 | Bend 45° + Bend 90° | 95÷135 | 310 | 214 | 33 | 110 | upon request |
