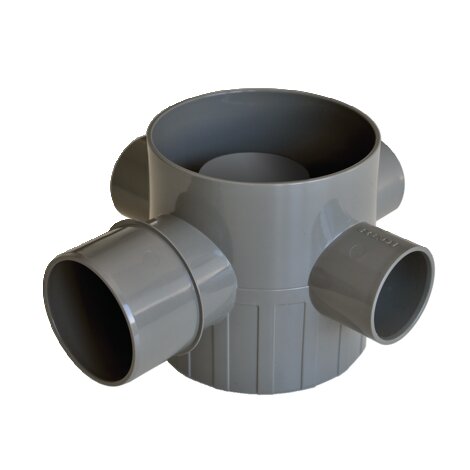

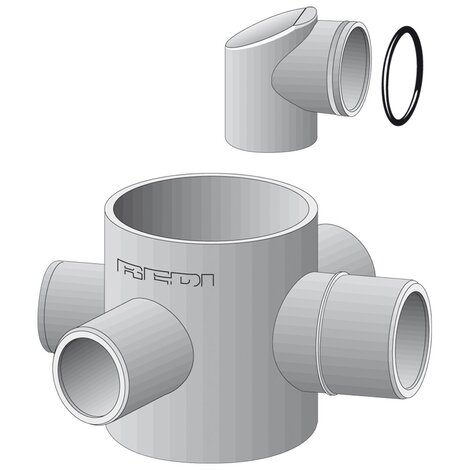

Floor trap with Multi-inlets
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey
Water seal 50 mm in compliance with UNI EN1253
| note : | Connections: 1 spigot outlet DN1= 75(mm). 3 female blank inlets DN2= 50(mm). |

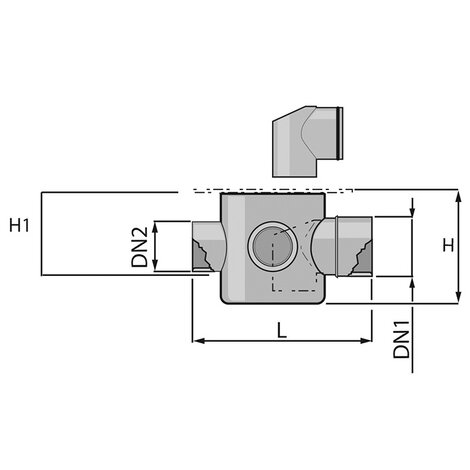

| Reference | H (mm) | H1 (mm) | DN1 (mm) | DN2 (mm) | Ø (mm) | L (mm) | H2 (mm) | Version |
|---|---|---|---|---|---|---|---|---|
| 1961202 | 137,5 | 92 | 75 | 50 | 150 | 237,5 | 50 | HIGH (reinforced share) |

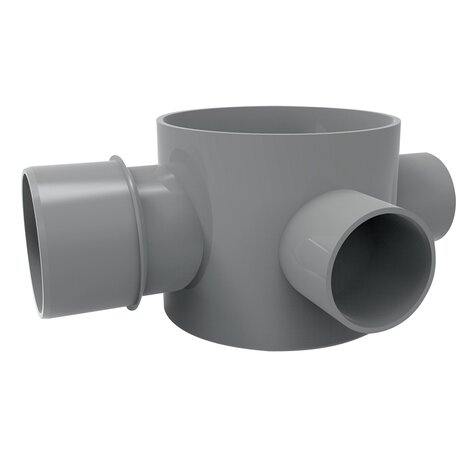

| 19613B2 | 107,5 | 82 | 75 | 50 | 150 | 237,5 | 35 | LOW |
