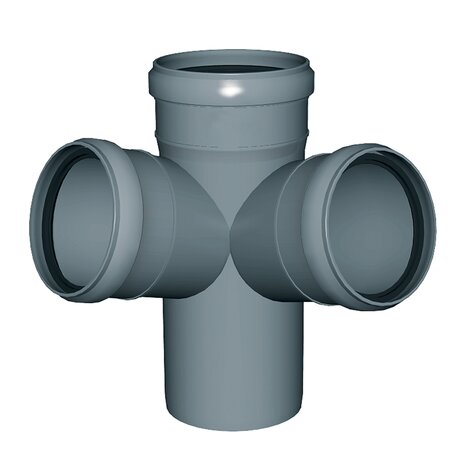

Double corner branch
ULTRAMAX completed with AMAX fittings range is the push-fit polypropylene complete soil and waste system for civil and industrial waste water drainage.
EN 1451 Push-Fit PP Pipe and Fittings
Impact-Resistant
B1 Fire Reaction Class, Self-extinguishing
| note : | Fabricated |

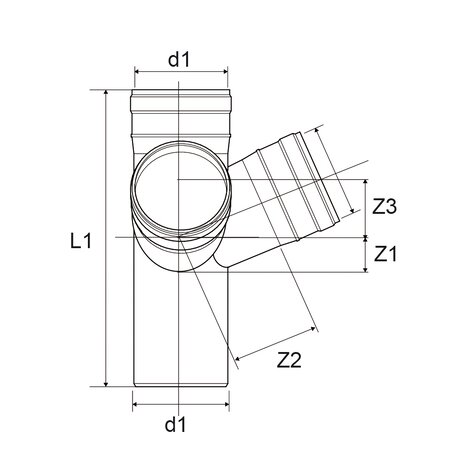

| Reference | Colour | Type | D1 (mm) | Z1 (mm) | Z2 (mm) | Z3 (mm) | L1 (mm) | α | D | d2 | Version |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Z4950PP | Grey RAL 7037 | Fabricated | 110 | 40 | 86 | 86 | 202 | 87°30' | 110 | 110 | upon request |
Certificates
Downloads
1.2 MB,
PDF
get_app
REDI Export Catalogue
