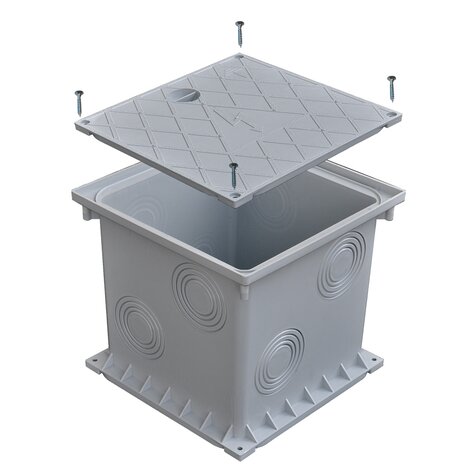

Catch basin for electric cables with watertight cover PP
SURFACE DRAINAGE SYSTEMS, CATCH BASINS, COVERS AND GRILLS

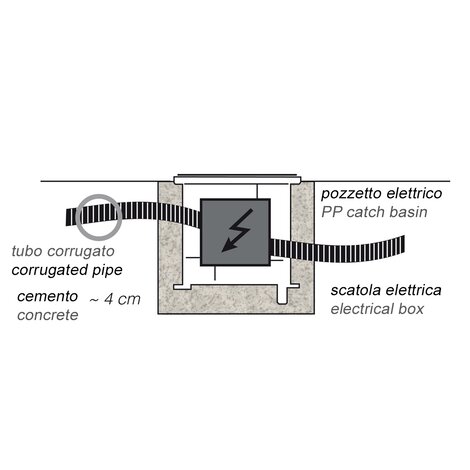

To use as inspection chamber for electric cables
Material Polypropylene.
Inlet/outlet: Ø40, Ø50, Ø63, Ø75 mm.
Condensation discharge Ø 20 mm.
Screws for cover fastening included.
THE KEY POINTS: Easy to open; Watertight; Internal support for electrical boxes; Anti-slip cover; Customizable on request; Stacking - Pre cut bottom.
IP67 certificate in accordance to CEI EN60529 norm. Protection against temporary water (max 30’ at 1 mt depth). Total protection against bodies and dust penetration.
All products can be classified in load class A15 in accordance with regulation EN124 (resistance >15 KN). All tests have been carried out at internal laboratories in Aliaxis Group.
| note : | CERTIFICATION: IP 67 certificate in accordance to CEI EN60529 Norm (Total protection against bodies and dust penetration - Protection against temporary water max 30’ at 1 mt depth). All products can be classified in load class A15 in accordance with regulation EN124 (resistance >15 KN). All tests have been carried out at internal laboratories in Aliaxis Group. |
| Reference | RAL | H (mm) | Dim (mm) | Material |
|---|---|---|---|---|
| E802504 | 7035 | 240 | 250x250 | PP |
