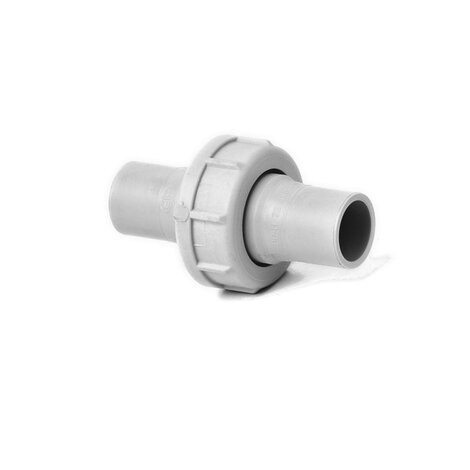

BBM-L SDR 11 - Union
Long spigot union for butt welding with seal in EPDM or FKM PN10 SDR 11 - S5.
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
*EPDM

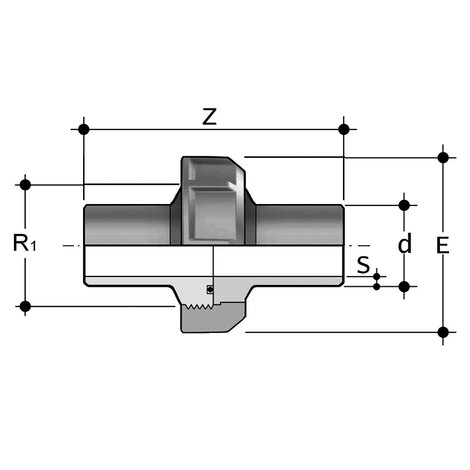

| Reference | d | DN | R1 | E | s | Z | g |
|---|---|---|---|---|---|---|---|
| BBML11020E | 20 | 15 | 1" | 46 | 1,9 | 190 | 70 |
| BBML11025E | 25 | 20 | 1"1/4 | 56 | 2,3 | 190 | 105 |
| BBML11032E | 32 | 25 | 1"1/2 | 66 | 2,9 | 190 | 140 |
| BBML11040E | 40 | 32 | 2" | 79 | 3,7 | 190 | 210 |
| BBML11050E | 50 | 40 | 2"1/4 | 87 | 4,6 | 190 | 295 |
| BBML11063E | 63 | 50 | 2"3/4 | 107 | 5,8 | 190 | 480 |
**FKM
| Reference | d | DN | R1 | E | s | Z | g |
|---|---|---|---|---|---|---|---|
| BBML11020F | 20 | 15 | 1" | 46 | 1,9 | 190 | 70 |
| BBML11025F | 25 | 20 | 1"1/4 | 56 | 2,3 | 190 | 105 |
| BBML11032F | 32 | 25 | 1"1/2 | 66 | 2,9 | 190 | 140 |
| BBML11040F | 40 | 32 | 2" | 79 | 3,7 | 190 | 210 |
| BBML11050F | 40 | 50 | 2"1/4 | 87 | 4,6 | 190 | 295 |
| BBML11063F | 63 | 50 | 2"3/4 | 107 | 5,8 | 190 | 480 |
