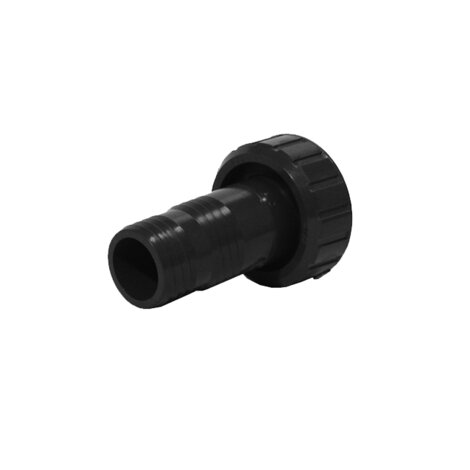

ADV - Hose adaptor
Hose adaptor with BSP threaded female end (R) and EPDM flat gasket.
Series of fittings for pipes conveying fluids under pressure with threaded joints.

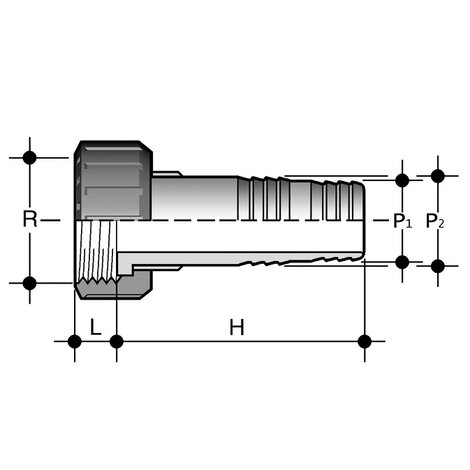

| Reference | R x P[5:1] x P[5:2] | PN | H | L | g |
|---|---|---|---|---|---|
| ADV012012014 | 1/2” x 12 x 14 | 16 | 56 | 14 | 15 |
| ADV034016018 | 3/4” x 16 x 18 | 16 | 60 | 11,5 | 24 |
| ADV100020022 | 1” x 20 x 22 | 16 | 67 | 11 | 35 |
| ADV114025027 | 1"1/4 x 25 x 27 | 16 | 81 | 14 | 55 |
| ADV112030032 | 1”1/2 x 30 x 32 | 16 | 97 | 16 | 80 |
| ADV200040042 | 2” x 40 x 42 | 16 | 104 | 18 | 140 |
| ADV200050052 | 2” x 50 x 52 | 16 | 111 | 16 | 180 |
| ADV214050052 | 2”1/4 x 50 x 52 | 16 | 111 | 17,5 | 200 |
| ADV234060064 | 2”3/4 x 60 x 64 | 16 | 123 | 20 | 300 |
