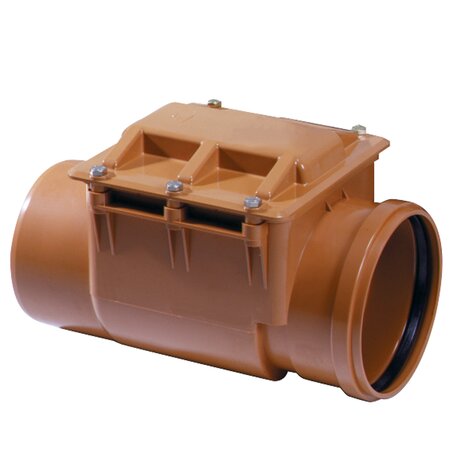

Access chamber

Pipes and fittings are made of PVC-U for non pressure underground drainage and sewage applications.
Application area code is “U” or “UD” where applicable.

Push-Fit PVC-U Fittings EN 1401
Gaskets EN 681-1 DIN 4060

Note: Gasket Standard lip ring
RAL 8023 Red - RAL 7037 Grey

Go back Data sheet

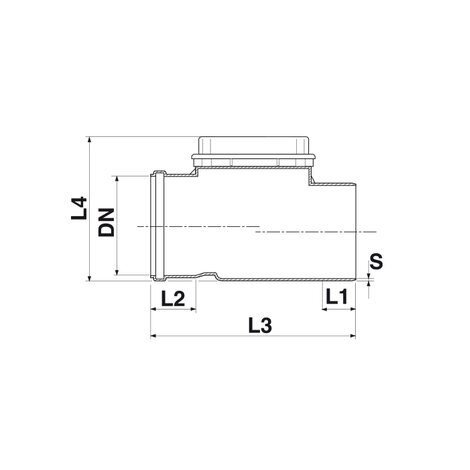

Reference	DN (mm)	S (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	RAL	Gasket	Version
1475551	110	4,0	61	61	307	192	8023	Standard	upon request
1476051	125	4,0	68	65	318	192	8023	Standard	upon request
1471691	160	4,0	74	74	334	220	8023	Standard	upon request
1472091	200	4,5	100	86	451	280	8023	Standard	upon request
