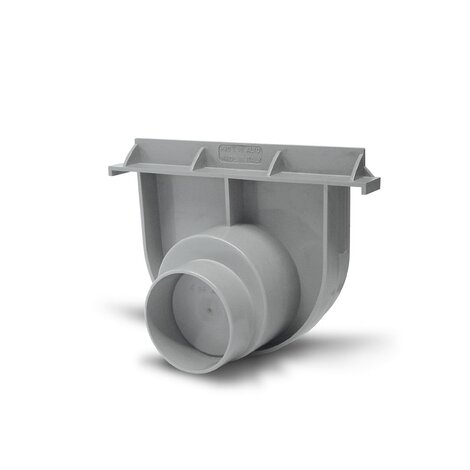

200 End cap-outlet HIGH
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills.
These channels can be placed in flat open areas without digging limitations. Suitable for pedestrian areas.
Material: PVC
Use: end cap for high channels 200 (easy-to-open outlet)

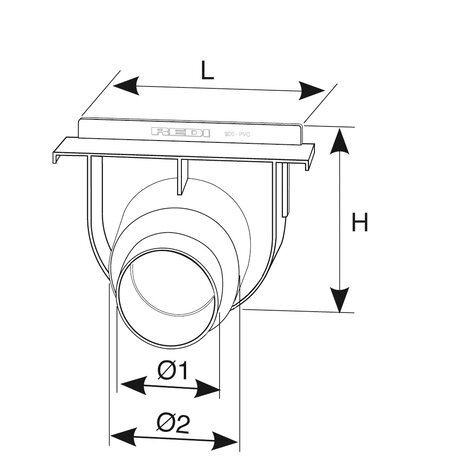

| Reference | RAL | H (mm) | L (mm) | Ø1 (mm) | Ø2 (mm) | Material |
|---|---|---|---|---|---|---|
| E1720A4 | 7035 | 170 | 200 | 80 | 100 | PVC |
| E1722A4 | 7035 | 170 | 200 | 75 | 110 | PVC |
