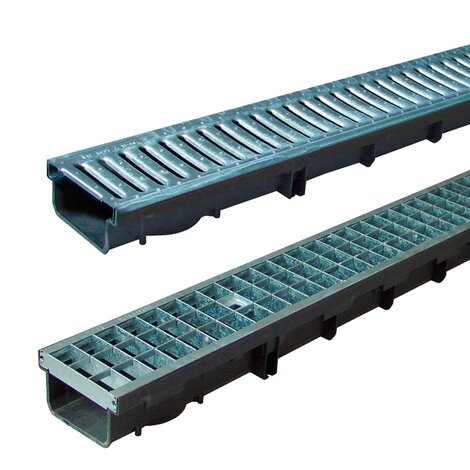

130x1000 PP Channel H52 with “T” section grill
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills.
These channels can be placed in flat open areas without digging limitations. To use in pedestrian areas and light traffic areas.
Tested by Istituto di Ricerche e Collaudi M. Masini S.R.L.
Marking: CE
Material: PP

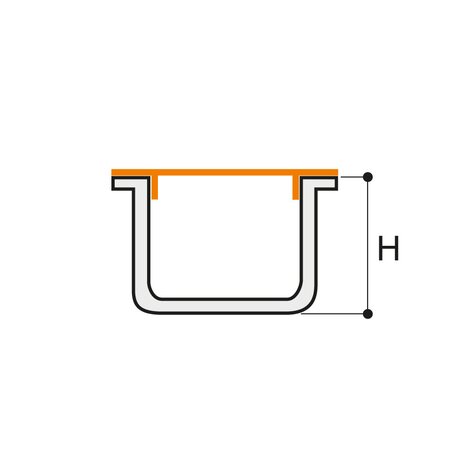

Shaped profile T
1 x vertical outlet predisposition
Grate locking device NOT applicable.
Grating: class A15 EN1433.
Use rain water drainage in pedestrian areas and light traffic areas.
Grating: class B125 EN1433.
Use rain water drainage. Especially designed for light duty traffic areas, such as garage fronts, private driverways, pedestrian areas.
| Reference | Colour | H (mm) | Dim (mm) | Type | Material | Grill | Lock system |
|---|---|---|---|---|---|---|---|

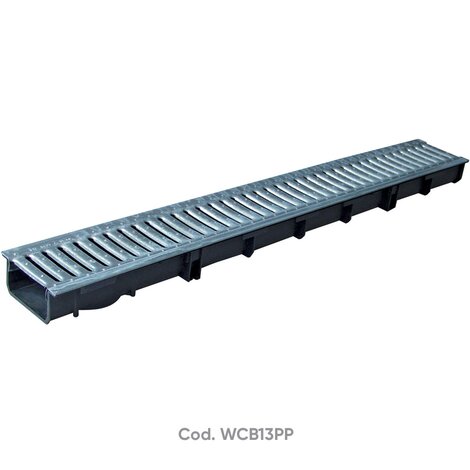

| WCB13PP | Black | 52 | 130x1000 | A15 EN1433 | PP | Galvanized steel | ad incastro / Interlock |

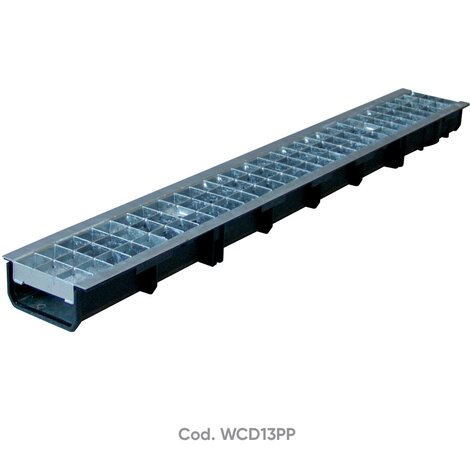

| WCD13PP | Black | 52 | 130x1000 | A15 EN1433 | PP | Galvanized steel (square mesh 33x33mm) | libero / Free |
