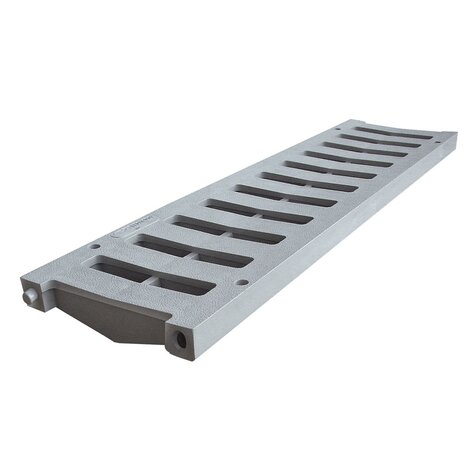

130 Grill Light traffic
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills.
These channels can be placed in flat open areas without digging limitations. To use on light duty traffic areas, such as garage fronts, private driveways, yards, pedestrian areas.
Material: PVC
Marking: CE
Regulation: EN124 A15 Load class.
Use: draining light traffic cover for 130 channels.
Features:
- antiskid thanks to the knurled surface
- provided with coupling pins
- preset for screw fastening to the channel
- provided with a central stiffening rib.
Important: in the planning stage, the grating breaking load must be scaled down by using a correct safety factor.

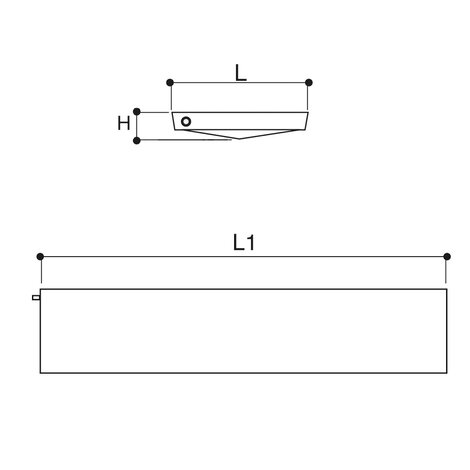

| Reference | RAL | H (mm) | L (mm) | L1 (mm) | kN | I/s | Material |
|---|---|---|---|---|---|---|---|
| W672004 | 7035 | 20 | 130 | 500 | 50 | 1,9 | PVC |
