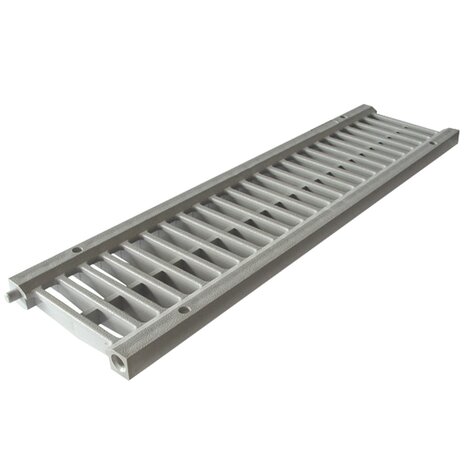

130 Grill High drainage
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills.
These channels can be placed in flat open areas without digging limitations. To use on light duty traffic areas, such as garage fronts, private driveways, yards, pedestrian areas.
Material: PVC
Marking: CE
Regulation: EN124 A15 Load class.
Use: draining grate for 130 channels.
Features:
- antiskid as the knurled surface and the chamfered draining profile avoid water stagnation and ice
- provided with coupling pins
- preset for screw fastening to the channel
- provided with a central stiffening rib.

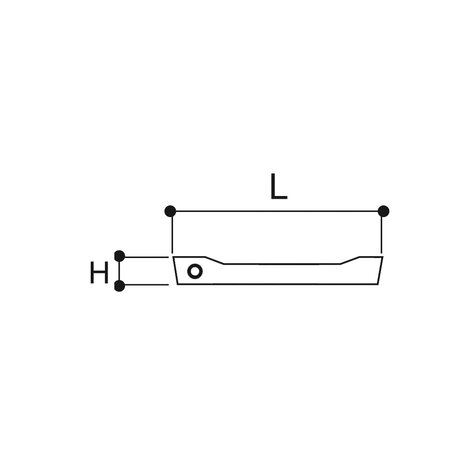

| Reference | RAL | H (mm) | L (mm) | L1 (mm) | I/s | Material |
|---|---|---|---|---|---|---|
| E257704 | 7035 | 20 | 130 | 500 | 3,6 | PVC |
