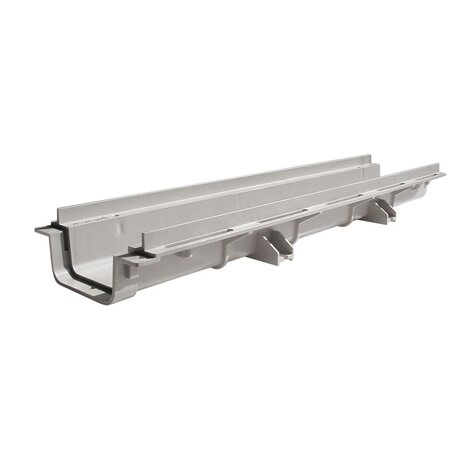

100 modular channel LOW
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills.
These channels can be placed in flat open areas without digging limitations. To use as rain water drainage in garages, terraces and balconies, multi-storeyed car parks in all cases of low concrete slab.
Material: PVC.
Features:
- fixing brackets (preset for nails or screw fastening)
- side slots for better anchorage to concrete
- modular couplings by pins
- preset for cover screw fastening
- vertical outlet Ø 63 (easy perforation)
- end cap (outlet diameter 50)
- possibility to glue the components to ensure water tightness.
N.B. Use solvent cement for PVC to weld the channels (Reference COLLA00 - COLLA25 - COLLA12).

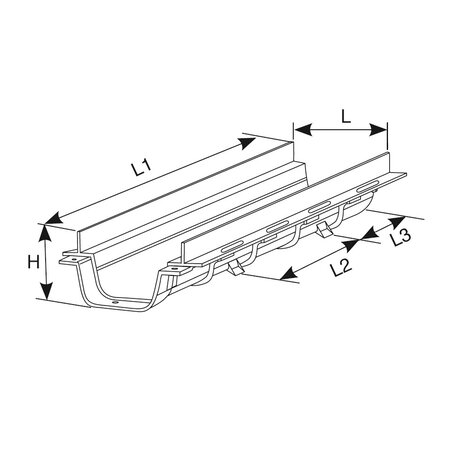

| Reference | RAL | H (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Material |
|---|---|---|---|---|---|---|---|
| E1810B4 | 7035 | 50 | 100 | 500 | 200 | 150 | PVC |
