Valves, fittings and pipe in PPH
PPH (polypropylene homopolymer) is a partially crystalline thermoplastic resin belonging to the polyolefin family.
PPh is the result of the polymerization of propylene (C3H6) with the help of catalysts.
The PPH line in latest generation Homopolymer Polypropylene consists of a complete range of pipes, fittings and valves to be used in the construction of process and service lines for conveying industrial fluids under pressure for maximum operating temperatures up to 100°C .
The entire line is made using Polypropylene Homopolymer resins MRS 100 (PP-H 100) according to classification DIN 8077-8078, DIN 16962 and approved by DIBt - Deutsches Institut für Bautechnik for use in industrial processes.
Features of the PPH
For use in piping systems, the latest generation Polypropylene Homopolymer, PPH, offers excellent performance up to high operating temperatures and high resistance to chemical attack thanks to the physical characteristics of the PPH material.
Among the main properties of the latest generation homopolymer resins we can mention:
High chemical resistance
The use of PPH (Polypropylene) resins, in addition to guaranteeing excellent chemical resistance, specifically against halogens and alkaline solutions, allows, thanks to the use of particular additives, the maintenance of high mechanical characteristics also in the transport of detergents and products similar chemists. The PPH material offers complete compatibility also in the transport of drinking water and water to be made potable, demineralised water and thermal waters for curative use as well as for physiotherapy.
Excellent thermal stability
Especially in the intermediate temperature range between 10°C and 80°C, typical of industrial applications, PPH guarantees performances of excellent mechanical and impact resistance with high safety factors.
Duration over time
The PPH material has a high circumferential breaking load value (Minimum Required Strength MRS≥ 10.0 MPa at 20°C) and made it possible to obtain extremely long life times of the installations, without any particular physical-mechanical decay.
PPH valves, PPH pipe and PPH fittings: a complete system
PPH is widely used in industrial applications due to its high resistance to chemical agents, the ability to operate in a wide range of temperatures and the joining system by means of polyfusion welding.
Our range in PPH (homopolymer polypropylene) is suitable for the assembly of process and service lines intended for the distribution of aggressive industrial fluids under pressure.
PPH systems lend themselves to a variety of applications, including mixing and dosing of chemicals and treatment of exhaust gases.
Our solutions have been selected by some of the major international metallurgical, iron and steel and mining companies, for extraction, surface treatment and acid regeneration processes.

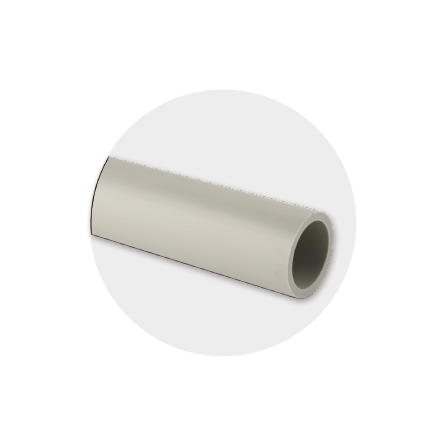

ISO-UNI pipe in PP-H
Pressure tube
Pressure pipes for jointing system by butt or socket welding.
ISO-UNI fittings in PPH
Series of fittings intended for the conveyance of pressurized fluids with jointing system by means of socket hot welding.
ISO-BSP fittings in PPH
ISO-BSP through fittings.
Series of fittings intended for the conveyance of pressurized fluids with jointing system by means of threading and socket heat welding.
VKD Dual Block - VALVE in PPH
DUAL BLOCK® 2-way ball valve.
FIP has developed a VKD DUAL BLOCK® type ball valve to introduce a high reference standard in the design of thermoplastic valves. VKD is a radially disassembled piston ball valve that responds
to the most stringent requirements required in industrial applications.
VKR Dual Block - VALVE in PPH
DUAL BLOCK® regulating ball valve.
The VKR DUAL BLOCK® valve combines the high levels of reliability and safety typical of the VKD full bore ball valve with the new flow regulation function with linear type characteristic curve which meets the most stringent requirements typical of industrial applications.
TKD Dual Block - VALVE in PPH
DUAL BLOCK® 3-way ball valve.
FIP has developed a TKD DUAL BLOCK® type ball valve to introduce a high reference standard
in the conception of thermoplastic valves. TKD is a sorting ball valve and
radially disassembled mixing valve that meets the most stringent requirements required in industrial applications.
SR - VALVE in PPH
Ball check valve.
The check valve SR has the function of allowing the passage of the fluid in one direction only.
FK - VALVE in PPH
Butterfly valve.
The FK is a shut-off and regulation butterfly valve, with structural characteristics that are ideal for use in industrial applications that require high performance and reliability over time. This valve is also equipped with the customized Labeling System.
DK Dialock - VALVE in PPH
DIALOCK® 2-way diaphragm valve.
The DK DIALOCK® diaphragm valve is ideal for regulating and shutting off abrasive fluids or fluids with impurities. The new internal geometry of the body significantly increases the flow coefficient, reduces pressure drops and allows accurate adjustment over the entire poppet stroke. The DK has reduced dimensions and weight. The innovative handwheel is equipped with a patented mechanism for locking the manoeuvre, immediate and ergonomic, which allows you to lock any adjustment position reached.
CM - VALVE in PPH
Compact diaphragm valve.
The CM is a manually operated diaphragm valve of reduced dimensions and particularly compact structure, ideal for use in confined spaces.
VM - VALVE in PPH
Diaphragm valve.
The VM is particularly suitable for regulating and shutting off fluids that are abrasive or contain impurities. The handwheel control and the diaphragm seal allow precise and effective regulation and reduce the risk of water hammer to a minimum.
Do you need to make a flanged connection?
Aliaxis has designed the innovative 3+ Backing Ring which, thanks to its optimized design, combines a unique lightness with exceptional mechanical strength, ensuring a simple, safe and reliable installation.
Are you interested in the implemented versions?
Beside the manually operated versions, Aliaxis offers the actuated versions which are made using actuators compliant with current regulations and selected by FIP on the basis of their quality and reliability requirements. The efficiency of these valves, tested according to the company's quality standards, is guaranteed by the expertise and know-how that FIP dedicates to the creation of its products.
Normative requirements
The production of the PP-H (100) lines is carried out following the highest quality standards and in complete compliance with the environmental constraints imposed by the laws in force and in accordance with the ISO 14001 standard. All products are manufactured in accordance with the guarantee system of quality according to ISO 9001 standard.
- ANSI B16.5 cl.150 Pipe Flanges and Flange Fittings - NPS 1/2 to NPS 24 mm/inch.
- ASTM D 4101-06 Polypropylene compound according to classification PP0110B56000.
- BS 10 Specification for flanges and bolts for pipes, valves and fittings.
- EN 10226-1/-2 Whitworth thread for threaded pipes and fittings.
- DIN 8077-8078 PP-H pipes, metric series dimensions.
- DVS 2202-1 Imperfections of welded joints of PP-H, characteristics, descriptions and evaluations.
- DVS 2207-11 Socket and butt welding of PP-H components.
- DVS 2208-1 Machines and equipment for thermoelement welding of pipes, pipe parts and panels.
- EN 558-1 Industrial valves - External boundary dimensions of metallic valves for use in flanged piping systems - Part 1: Design according to PN.
- EN 1092-1 Flanges and their joints - Circular flanges for pipes, valve fittings and accessories - Part 1: Steel flanges, designated PN.
- EN ISO 15494 Component systems (Pipes, Fittings and Valves) in PP-H for industrial applications.
- ISO 228-1 Pipe threads for non-tight coupling on the thread.
- ISO 5211 Couplings for fractional turn actuators.
- ISO 7005-1 Metal flanges; part 1: steel flanges.
- JIS B 2220 Metal Pipe Flanges.
- UNI 11318 Pocket welding of PP-H components.
- UNI 11397 Butt welding of PP-H components.
- EN 14728 Imperfections in thermoplastic welds -classification.
- ISO 9624 Thermoplastic piping systems for fluids under pressure -flange adapters and loose backing flanges- Mating dimensions.
Approvals and quality marks
DIBt FIP valves in PP-H have been tested and certified by DIBt (Deutsches Institut für Bautechnik)
EAC FIP PP-H valves are EAC certified in accordance with Russian regulations for Safety, Hygiene and Quality
RINA The FIP valves in PP-H are recognized as suitable for the conveyance and treatment of sanitary and conditioning waters on board ships and other units classified by RINA.
UKR SEPRO PP-H FIP valves and fittings are certified in accordance with the Ukrainian regulations for Safety and Quality
NIZP The FIP pipe, valves and fittings in PP-H are recognized as suitable for the transport of drinking water by the NIZP (National Institute of Public Health - Poland)
