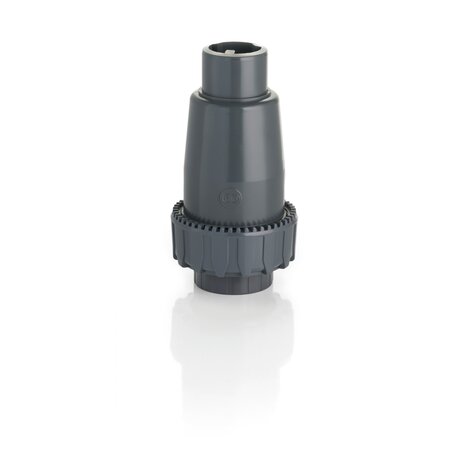

VZIV - Foot valve DN 10:50

Foot valve with male ends for solvent welding, metric series.

The VZ foot valve allows the passage of fluid in one direction only.
Go back Data sheet

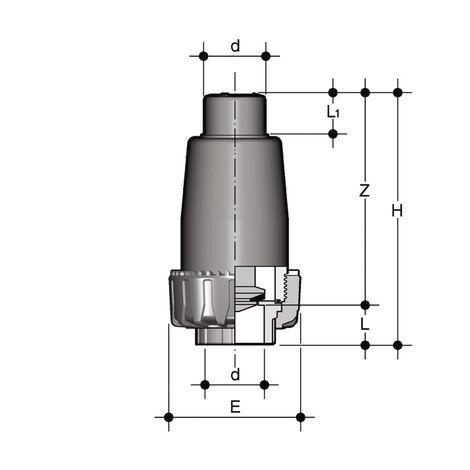

Reference d DN PN E H L L1 Z g
VZIV016E 16 10 16 55 101 14 15 87 105
VZIV020E 20 15 16 55 103 16 18 87 120
VZIV025E 25 20 16 66 125 19 20 106 210
VZIV032E 32 25 16 75 150 22 24 128 350
VZIV040E 40 32 16 87 171 26 28 145 560
VZIV050E 50 40 16 100 187 31 34 156 760
VZIV063E 63 50 16 122 223 38 41 185 1340
  • Connection system for solvent weld and threaded joints
  • No metal parts in contact with the fluid
  • Piston with incorporated counterweight able to work with high intensity fluid
  • Limited pressure loss. Only minimum back pressure is required for the hermetic seal
  • Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
  • Can be maintained with the valve body installed
