VROM - Check valve DN 15:80
Check valve with steel core backing ring, PP/FRP coated, drilled EN/ISO/DIN PN10/16.
The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
EPDM

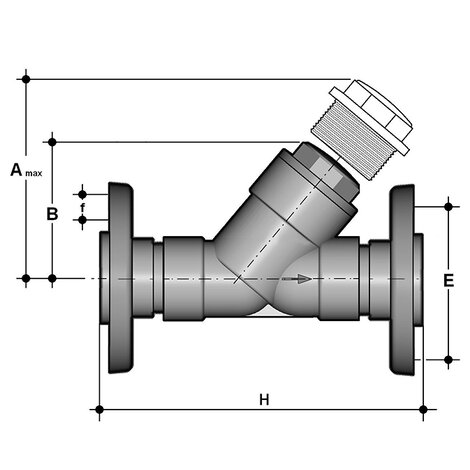

| Reference | d | DN | PN | A max | B | F | f | H | g |
|---|---|---|---|---|---|---|---|---|---|
| VROM075E | 75 | 65 | 6 | 300 | 179 | 145 | 18 | 356 | 5990 |
| VROM090E | 90 | 80 | 4 | 325 | 192 | 160 | 18 | 404 | 7230 |
FKM
| Reference | d | DN | PN | A max | B | F | f | H | g |
|---|---|---|---|---|---|---|---|---|---|
| VROM075F | 75 | 65 | 6 | 300 | 179 | 145 | 18 | 356 | 5990 |
| VROM090F | 90 | 80 | 4 | 325 | 192 | 160 | 18 | 404 | 7230 |
- Connection system for weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
