VMFV - Mini Diaphragm valve DN 8
Mini-diaphragm valve with BSP threaded female ends.
The VM mini-valve is used to shut-off and regulate fluid flow and is characterised by its reduced size.

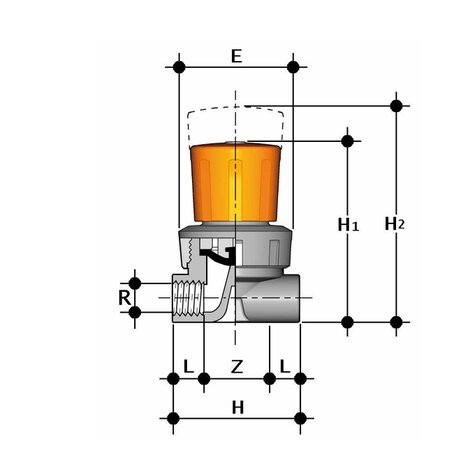

| Reference | R | DN | PN | E | H | H1 | H[5:2] | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|
| VMFV014E | 1/4” | 8 | 10 | 43 | 48 | 72 | 81 | 10,5 | 27 | 70 |
- Connection system for solvent weld and threaded joints
- Extremely compact dimensions
- Can be installed in any position
- Valve material compatibility (PVC-U) and elastomer seal elements (EPDM), with water, drinking water and other food substances as per current regulations
- Specifically designed for laboratory applications or for sampling purposes
