VKDBEV - DUAL BLOCK® 2-way ball valve DN 65:100

DUAL BLOCK® 2-way valve with PE100 SDR 11 male end connectors for butt welding or electrofusion (CVDE).

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications. This valve is also equipped with a customisable Labelling System.

Main features:

  • HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock
  • Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Double stem with double O-Rings for ball centring and operating torque reduction
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Go back Data sheet
Render della valvola a sfera a 2 vie DUAL BLOCK® VKDBEV - DN 65:100 in PVC-U

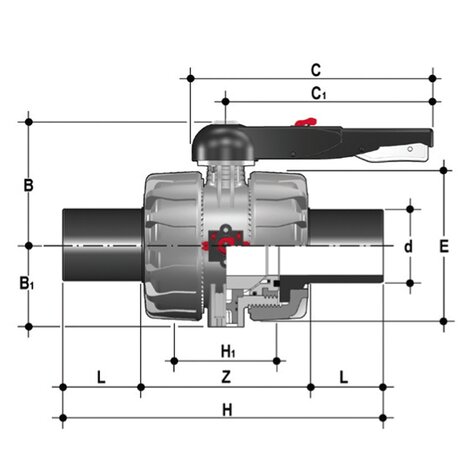

Disegno tecnico VKDBE DN 65:100
Render della valvola a sfera a 2 vie DUAL BLOCK® VKDBEV - DN 65:100 in PVC-U
Disegno tecnico VKDBE DN 65:100

EPDM

Reference d DN PN B B1 C C1 E H H1 L Z g
VKDBEV075E 75 65 16 164 87 225 175 162 356 133 71 214 4400
VKDBEV090E 90 80 16 177 105 327 272 202 390 149 88 214 7100
VKDBEV110E 110 100 16 195 129 385 330 236 431 167 92 247 10800

FKM

Reference d DN PN B B1 C C1 E H H1 L Z g
VKDBEV075F 75 65 16 164 87 225 175 162 356 133 71 214 4400
VKDBEV090F 90 80 16 177 105 327 272 202 390 149 88 214 7100
VKDBEV110F 110 100 16 195 129 385 330 236 431 167 92 247 10800
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
  • STAINLESS steel co-moulded stem, with square section as per ISO 5211
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
