Solvent weld fittings - equal socket.

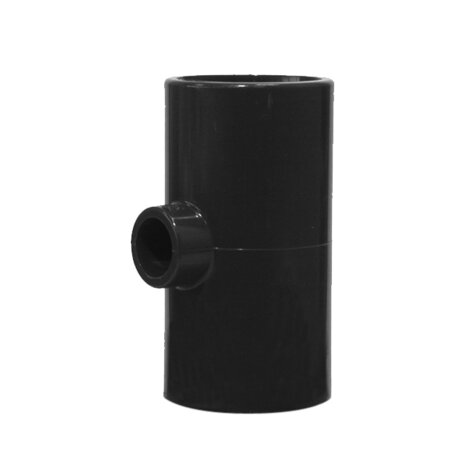

90° reducing Tee with reduced branch and solvent weld sockets.

Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
Go back Data sheet
Immagine del raccordo per incollaggio TRIV con estremità uguali

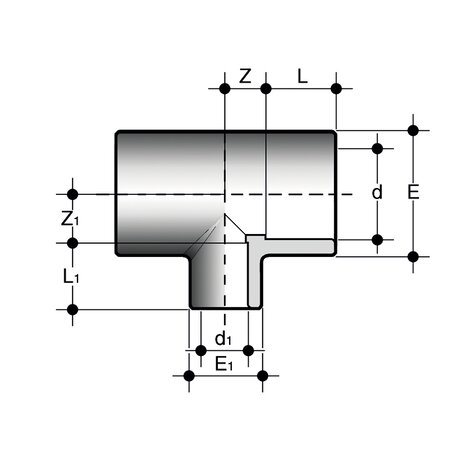

Disegno tecnico del raccordo per incollaggio - estremità uguali TRIV
Immagine del raccordo per incollaggio TRIV con estremità uguali
Disegno tecnico del raccordo per incollaggio - estremità uguali TRIV
Reference d x d1 PN E E[5:1] L L1 Z Z1 g
TRIV025020 25 x 20 16 33 28 19 16 14 14 37
TRIV032020 32 x 20 16 41 28 22 16 17,5 17,5 60
TRIV032025 32 x 25 16 41 34 22 19 17,5 17,5 65
TRIV040020 40 x 20 16 50 29 26 16 22 22 100
TRIV040025 40 x 25 16 50 34 26 19 22 22 100
TRIV040032 40 x 32 16 50 42 26 22 22 22 105
TRIV050020 50 x 20 16 61 30 31 16 27 27 160
TRIV050025 50 x 25 16 61 35 31 19 27 27 160
TRIV050032 50 x 32 16 61 42 31 22 27 27 165
TRIV050040 50 x 40 16 61 51 31 26 27 27 170
TRIV063025 63 x 25 16 76 36 38 19 33,5 33,5 290
TRIV063032 63 x 32 16 76 43 38 22 33,5 33,5 295
TRIV063040 63 x 40 16 76 52 38 26 33,5 33,5 300
TRIV063050 63 x 50 16 76 62 38 31 33,5 33,5 315
TRIV075032 75 x 32 16 91 41 44 22 40 40 530
TRIV075040 75 x 40 16 91 50 44 26 40 40 540
TRIV075050 75 x 50 16 91 61 44 31 40 40 550
TRIV075063 75 x 63 16 91 76 44 38 40 40 580
TRIV090040 90 x 40 16 109 50 51 26 48 48 870
TRIV090050 90 x 50 16 109 61 51 31 48 48 880
TRIV090063 90 x 63 16 109 76 51 38 48 48 900
TRIV090075 90 x 75 16 109 91 51 44 48 48 940
TRIV110050 110 x 50 16 133 61 61 31 61 61 1580
TRIV110063 110 x 63 16 133 76 61 38 61 61 1590
TRIV110075 110 x 75 16 133 91 61 44 61 61 1610
TRIV110090 110 x 90 16 133 109 61 51 61 61 1640
TRIV160110 160 x 110 16 187 131 86 61 82 81 3700
TRIV250110 *250 x 110 10 285 134 129 63 61 128 8300
TRIV250160 *250 x 160 10 285 193 129 87 86 129 9900
TRIV250200 *250 x 200 10 285 228 129 106 133 132 12000
TRIV280160 *280 x 160 10 320 193 146 88 84 153 12500
TRIV280225 *280 x 225 10 320 258 146 117,5 117 150,5 14900
TRIV315160 *315 x 160 8 355 193 164 86 83 161 15000
TRIV315200 *315 x 200 8 355 228 164 106 102 179 17500
TRIV315250 *315 x 250 8 355 285 164 131 127 160 19200

*resale product
