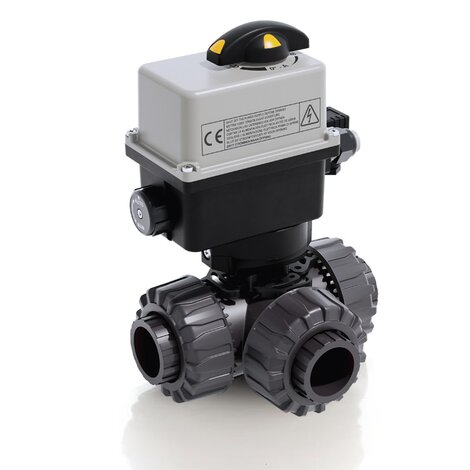

TKDLV/CE 24 V AC/DC - Electrically actuated DUAL BLOCK® 3-way ball valve DN 10:50

3 way DUAL BLOCK® ball valve with female ends, BS series with electric actuator 24 V AC/DC “T” ball, configuration 1.

FIP has developed a TKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. TKD is a True Union diverting and mixing ball valve that meets the most stringent needs required in industrial applications.

In addition to the manually actuated version, TKD is also available in TKD/CE electrically actuated and TKD/CP pneumatically actuated configurations. Actuators are firmly connected to the valve by the special FIP PowerQuick modules fully made of PP-GR technopolymer. TKD/CE and TKD/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products.

Main features:

  • Electric actuator constructed according to FIP specifications; with plastic shell and standard emergency override. Available with voltages from 12 to 240V
  • Rack & pinion type pneumatic actuator constructed according to FIP specifications: fully protected against weather corrosion available in double-acting (DA) or simple-acting normally closed (NC) or normally open (NO) versions. Three different positions according to 2 configurations are possible with T ball: 0°-90°-180° and 0°-90°-270°
  • High surface finish stem with double O-Ring. The double connection key system guarantees solid and reliable actuator torque transmission to the ball
  • Easy to install PowerQuick module for pneumatic or electric actuator fully made of highly robust technopolymer
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Ball shutter high surface finish with floating type full passage with T or L port
Go back Data sheet

EPDM

Reference d DN PN E H H1 L Z B B1 g
TKDLVEL038E1 3/8” 10 16 54 118 80 14.7 88.6 205 29 1843
TKDLVEL012E1 1/2” 15 16 54 118 80 17 85 205 29 1843
TKDLVEL034E1 3/4” 20 16 65 145 100 19 106.8 216 34.5 2076
TKDLVEL100E1 1” 25 16 73 160 110 22.5 115 221 39 2299
TKDLVEL114E1 1” 1/4 32 16 86 188.5 131 26 136.6 238 46 2880
TKDLVEL112E1 1” 1/2 40 16 98 219 148 30.2 159 244 52 3242
TKDLVEL200E1 2” 50 *10 122 266.5 179 36.200000000000003 194.2 261 62 4362

FKM

Reference d DN PN E H H1 L Z B B1 g
TKDLVEL038F1 3/8” 10 16 54 118 80 14.7 88.6 205 29 1843
TKDLVEL012F1 1/2” 15 16 54 118 80 17 85 205 29 1843
TKDLVEL034F1 3/4” 20 16 65 145 100 19 106.8 216 34.5 2076
TKDLVEL100F1 1” 25 16 73 160 110 22.5 115 221 39 2299
TKDLVEL114F1 1” 1/4 32 16 86 188.5 131 26 136.6 238 46 2880
TKDLVEL112F1 1” 1/2 40 16 98 219 148 30.2 159 244 52 3242
TKDLVEL200F1 2” 50 *10 122 266.5 179 36.200000000000003 194.2 261 62 4362
  • Joint system for solvent welding (PVC-U and PVC-C only), for welding (PP-H only), for threading
  • Patented SEAT STOP® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
  • Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
  • Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of disassembling downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double connection key to the ball, equipped with visual ball position indicator for correct handle installation
  • Integrated bracket for valve anchoring
  • Possibility of installing pneumatic and/or electric actuators thanks to the robust anchor tower for easy and quick automation using the PowerQuick module
