TKDIC/CP SA - Pneumatically actuated DUAL BLOCK® 3-way ball valve DN 10:50

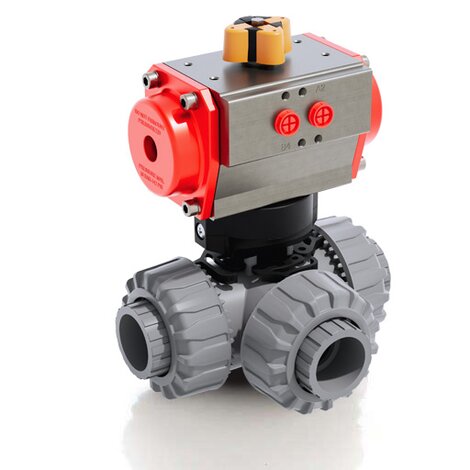

3 way DUAL BLOCK^® ball valve with female ends for solvent welding, metric series with pneumatic actuator, Single-acting function. "T" ball, configuration 1.

FIP has developed a TKD DUAL BLOCK^® ball valve to introduce a high reference standard in thermosplastic valve design. TKD is a True Union diverting and mixing ball valve that meets the most stringent needs required in industrial applications.

In addition to the manually actuated version, TKD is also available in TKD/CE electrically actuated and TKD/CP pneumatically actuated configurations. Actuators are firmly connected to the valve by the special FIP PowerQuick modules fully made of PP-GR technopolymer. TKD/CE and TKD/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products.

Main features:

Electric actuator constructed according to FIP specifications; with plastic shell and standard emergency override. Available with voltages from 12 to 240V
Rack & pinion type pneumatic actuator constructed according to FIP specifications: fully protected against weather corrosion available in double-acting (DA) or simple-acting normally closed (NC) or normally open (NO) versions. Three different positions according to 2 configurations are possible with T ball: 0°-90°-180° and 0°-90°-270°
High surface finish stem with double O-Ring. The double connection key system guarantees solid and reliable actuator torque transmission to the ball
Easy to install PowerQuick module for pneumatic or electric actuator fully made of highly robust technopolymer
DUAL BLOCK^® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
Ball shutter high surface finish with floating type full passage with T or L port

Go back Data sheet

EPDM

Reference	d	DN	PN	E	H	H1	L	Z	R_a	B	B₁	E₁	E2
TKDICSA016E1	16	10	16	54	118	80	14	90	G1/8"	145	29	138	75
TKDICSA020E1	20	15	16	54	118	80	16	86	G1/8"	145	29	138	86
TKDICSA025E1	25	20	16	65	145	100	19	107	G1/4"	156.5	34.5	155.5	86
TKDICSA032E1	32	25	16	73	160	110	22	116	G1/4"	161	39	155.5	86
TKDICSA040E1	40	32	16	86	188.5	131	26	136.5	G1/4"	194	46	155.5	86
TKDICSA050E1	50	40	16	98	219	148	31	157	G1/4"	200	52	155.5	86
TKDICSA063E1	63	50	16	122	266.5	179	38	190.5	G1/4"	217	62	210	94

FKM

Reference	d	DN	PN	E	H	H1	L	Z	R_a	B	B₁	E₁	E2
TKDICSA016F1	16	10	16	54	118	80	14	90	G1/8"	145	29	138	75
TKDICSA020F1	20	15	16	54	118	80	16	86	G1/8"	145	29	138	86
TKDICSA025F1	25	20	16	65	145	100	19	107	G1/4"	156.5	34.5	155.5	86
TKDICSA032F1	32	25	16	73	160	110	22	116	G1/4"	161	39	155.5	86
TKDICSA040F1	40	32	16	86	188.5	131	26	136.5	G1/4"	194	46	155.5	86
TKDICSA050F1	50	40	16	98	219	148	31	157	G1/4"	200	52	155.5	86
TKDICSA063F1	63	50	16	122	266.5	179	38	190.5	G1/4"	217	62	210	94

Joint system for solvent welding (PVC-U and PVC-C only), for welding (PP-H only), for threading
Patented SEAT STOP^® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of disassembling downstream pipes with the valve in the closed position
High surface finish stem with double O-Ring and double connection key to the ball, equipped with visual ball position indicator for correct handle installation
Integrated bracket for valve anchoring
Possibility of installing pneumatic and/or electric actuators thanks to the robust anchor tower for easy and quick automation using the PowerQuick module
