RIF

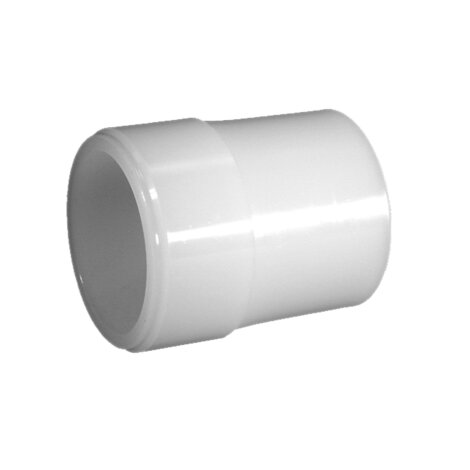

Adaptor for socket welding - reducers.

Reducer: spigot (d), reduced socket for socket welding (d1).

Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

Go back Data sheet

Reference	d x d₁	PN	E	H	Z	g
RIF020016	20 x 16	16	20	35	22	11
RIF025020	25 x 20	16	26	40	26	15
RIF032025	32 x 25	16	32	46	30	28
RIF040025	40 x 25	16	32	51	35	40
RIF040032	40 x 32	16	40	54	36	47
RIF050032	50 x 32	16	39	59	41	55
RIF050040	50 x 40	16	47	63	43	70
RIF063032	63 x 32	16	40	67	49	100
RIF063050	63 x 50	16	60	76	53	130
RIF075063	75 x 63	16	75	89	61	220
RIF090063	90 x 63	16	73	97	70	280
RIF090075	90 x 75	16	87	104	73	335
RIF110090	110 x 90	16	103	121	85	520
