Reducing plug M/F 1 inlet
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

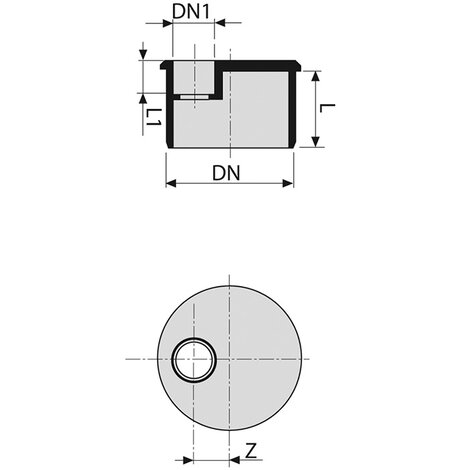

| Reference | DN1 (mm) | Z (mm) | L1 (mm) | DN (mm) | L (mm) | Version |
|---|---|---|---|---|---|---|
| 054070M | 32 | - | - | 63 | - | - |
| 054060M | 40 | 3 | 27 | 63 | 38 | - |
| 054090M | 50 | - | - | 63 | - | upon request |
| 054080M | 40 | 11,5 | 27 | 80 | 47 | upon request |
| 054850M | 50 | - | - | 80 | - | - |
| R6000NI | 32 | - | - | 100 | - | - |
| 054100M | 40 | 28 | 26 | 100 | 56 | - |
| 054200M | 50 | 23 | 31 | 100 | 56 | - |
| 054300M | 63 | 16 | 38 | 100 | 56 | - |
| 054400M | 80 | 8 | 47 | 100 | 56 | - |
| 054910M | 40 | 32 | 27 | 110 | 60 | - |
| 054920M | 50 | 27 | 32 | 110 | 60 | - |
| 054970M | 63 | 20 | 38 | 110 | 60 | - |
| 054930M | 75 | 14,5 | 44,5 | 110 | 60 | - |
| 054940M | 80 | 12 | 47 | 110 | 60 | - |
| 054990M | 100 | - | 57 | 110 | 60 | - |
| 054120M | 40 | - | - | 125 | - | upon request |
| 054130M | 50 | - | - | 125 | - | upon request |
| X4440NI | 80 | - | - | 125 | - | - |
| 054150M | 100 | - | - | 125 | - | - |
| 054160M | 110 | - | - | 125 | - | - |
