Q/BBE-C - Union end

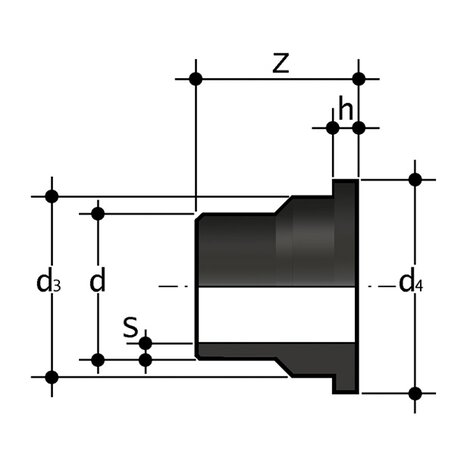

Union end, short spigot, for butt welding SDR 11 - S5.
Series of short and long fittings designed for conveying fluids under pressure for butt welding and electrofusion applications.
| Reference | d | Z | h | d3 | d4 | S | g |
|---|---|---|---|---|---|---|---|
| QBBEC11020 | 20 | 54 | 5 | 27,4 | 30 | 1,9 | 12 |
| QBBEC11025 | 25 | 54 | 6 | 35,9 | 38,5 | 2,3 | 20 |
| QBBEC11032 | 32 | 54 | 6 | 41,4 | 44,5 | 2,9 | 25 |
| QBBEC11040 | 40 | 54 | 7 | 52,8 | 56,2 | 3,7 | 45 |
| QBBEC11050 | 50 | 54 | 7 | 58,8 | 62,2 | 4,6 | 53 |
| QBBEC11063 | 63 | 54 | 8 | 73,8 | 78,3 | 5,8 | 89 |
- Size range: d 12 ÷ d 800 (mm)
- Nominal pressure: SDR 17 (PN10) with water at 20 °C, SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Flanging system: ISO 7005-1, EN 1092-1, EN ISO 15494, ANSI B16.5 cl.150
- Construction criteria: UNI EN ISO 15494
- Test methods and requirements: UNI EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307,UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
- Seal material: EPDM, FKM
