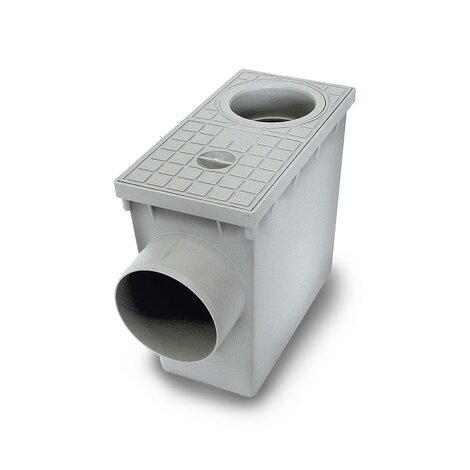

PP Trapped rainwater gully with round inlet and horizontal outlet
SURFACE DRAINAGE SYSTEMS, RAINWATER GULLIES
Pavements, grass or paved walkways: to use as inspection chamber for rain water flowing from gutter downpipes to the sewage.
Tested by CSTB. Flow rate in accordance with regulation EN 1253-1 par. 8.11.
Material: Polypropylene.
Benefits:
- light-weight
- easier installation than concrete version
- fully injection moulded
- high durability
- access cover with handle
- internal removable baffle plate
- available with either square or round inlet ROUND Ø 80/100 or Ø 75/110, SQUARE 80/100
- horizontal outlet Ø 100 and Ø 110.
Installation: a concrete floor seating is recommended.
| Reference | RAL | H (mm) | Ø (mm) | Ø1 (mm) | A x B (mm) | Ø2 (mm) | I/s |
|---|---|---|---|---|---|---|---|
| Y661504 | 7035 | 215 | 100 | 80 | 240X128 | 100 | 2,3 |
| Y661904 | 7035 | 215 | 110 | 75 | 240X128 | 110 | 2,3 |
| Y662004 | 7035 | 215 | 110 | 80 | 240X128 | 100 | 2,3 |
