PFV
Threaded fittings.

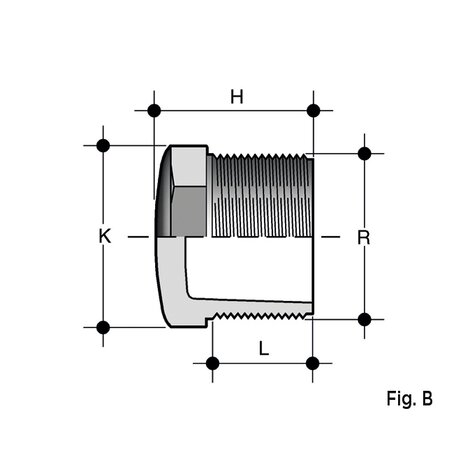

Plug with BSP male thread (Fig. B).
Series of fittings for pipes conveying fluids under pressure with threaded joints.
| Reference | R | PN | E | H | K | L | g |
|---|---|---|---|---|---|---|---|
| PFV212 | 2"1/2 | 16 | - | 61 | 80 | 30,2 | 180 |
| PFV300 | 3" | 16 | - | 71 | 93 | 33,3 | 245 |
| PFV400 | 4" | 16 | - | 87 | 118 | 39,3 | 550 |
