LIFV
Adaptor fittings - tank connectors.

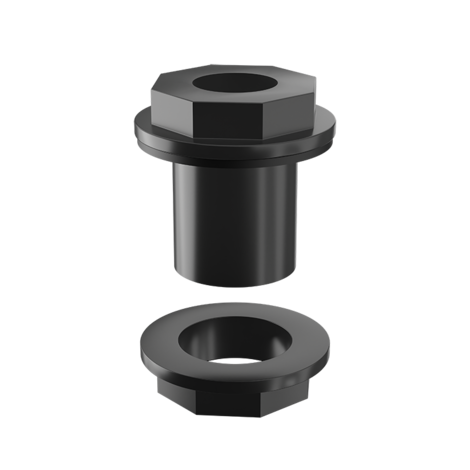

Tank connector with solvent weld socket d, male threaded joint R and female threaded joint R1 with tightening nut and flat gasket in EPDM or FKM
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.

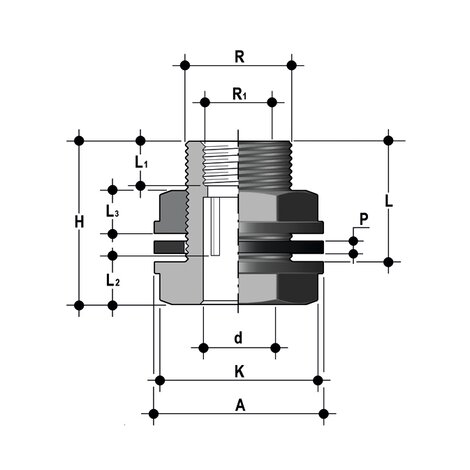

| Reference | d x R x R[5:1] | PN | A | H | K | L | L1 | L[5:2] | L[5:3] | P | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1RAS316B10 | 16 x 3/4" x 1/2" | 16 | 44 | 60,5 | 33 | 47 | 15 | 14 | 13,5 | 3 | 53 |
| 1RAS320C10 | 20 x 1" x 3/4" | 16 | 58 | 65 | 46 | 49 | 16,3 | 16 | 16 | 3 | 108 |
| 1RAS325D10 | 25 x 1"1/4 x 1" | 16 | 62 | 70 | 50 | 52 | 19,1 | 19 | 18 | 3 | 142 |
| 1RAS332D10 | 32 x 1"1/2 x 1" | 16 | 76 | 73 | 60 | 54 | 19,1 | 22 | 19 | 3 | 192 |
| 1RAS340F10 | 40 x 2" x 1"1/2 | 16 | 92 | 81 | 79 | 60 | 21,4 | 26 | 20,8 | 3 | 337 |
