KIFC
Adaptors - fittings.

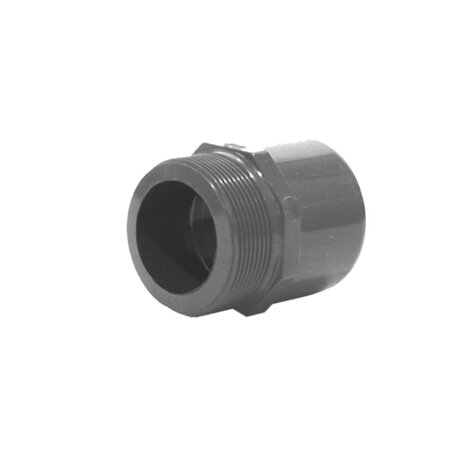

Double adaptor with solvent weld socket df, solvent weld spigot dm and BSP threaded male end R.
Series of fittings designed for conveying fluids under pressure with threaded and cold chemical solvent weld jointing systems (solvent welding) using suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Reference | dm x df x R | PN | K | L1 | Lf | Lm | Z | g |
|---|---|---|---|---|---|---|---|---|
| KIFC020016038 | 20 x 16 x 3/8" | 16 | 24 | 11,4 | 14 | 16 | 25,5 | 7 |
| KIFC025020012 | 25 x 20 x 1/2" | 16 | 30 | 15 | 16 | 19 | 30 | 16 |
| KIFC032025034 | 32 x 25 x 3/4" | 16 | 34 | 16,3 | 19 | 22 | 27,5 | 23 |
| KIFC040032100 | 40 x 32 x 1" | 16 | 42 | 19,1 | 22 | 26 | 32 | 38 |
| KIFC050040114 | 50 x 40 x 1"1/4 | 16 | 52 | 21,4 | 26 | 31 | 35,5 | 65 |
| KIFC063050112 | 63 x 50 x 1"1/2 | 16 | 65 | 21,4 | 31 | 38 | 39,5 | 113 |
| KIFC075063200 | 75 x 63 x 2" | 16 | 75 | 25,7 | 38 | 44 | 41 | 158 |
