FROV/C4 - Clapet valve with Hastelloy C4 spring DN 32:400

Clapet valve in PVC-U with Hastelloy spring, ISO-DIN series.

The FR type swing check valve is designed to be directly installed between stubs and flanges according to ISO/DIN or ANSI 150 standards.

Go back Data sheet

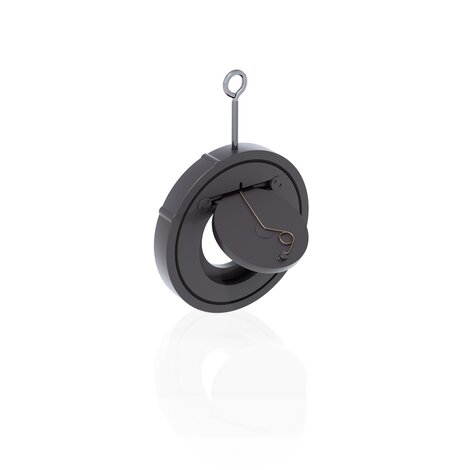

Render della valvola a clapet con molla in Hastelloy FROV/C4 - DN 32:400 in PVC-U
FROV/C4 - Clapet valve DN 32:400
Render della valvola a clapet con molla in Hastelloy FROV/C4 - DN 32:400 in PVC-U
FROV/C4 - Clapet valve DN 32:400

EPDM

Reference d DN PN ISO/DIN Z Di A B C g
FROV040EMLH 40 32 10 85 15 18 59 22 25 120
FROV050EMLH 50 40 10 95 16 22 72 25 28 160
FROV063EMLH 63 50 10 109 18 32 86 37 29 260
FROV075EMLH 75 65 10 129 20 40 105 50 31 330
FROV090EMLH 90 80 10 144 20 54 119 61 32 400
FROV110EMLH 110 100 10 164 23 70 146 77 31 560
FROV140EMLH 140 125 10 195 23 92 173 94 35 760
FROV160EMLH 160 150 6 220 26 105 197 100 40 1120
FROV225EMLH 225 200 6 275 34 154 255 152 38 2130
FROV280EMLH 280 250 5 330 40 192 312 180 41 3540
FROV315EMLH 315 300 5 380 45 227 363 215 41 5350
FROV355EMLH 350 350 5 440 49 266 416 245 44 7855
FROV400EMLH 400 400 5 491 65 310 467 285 50 12975

FKM

Reference d DN PN ISO/DIN Z Di A B C g
FROV040FMLH 40 32 10 85 15 18 59 22 25 120
FROV050FMLH 50 40 10 95 16 22 72 25 28 160
FROV063FMLH 63 50 10 109 18 32 86 37 29 260
FROV075FMLH 75 65 10 129 20 40 105 50 31 330
FROV090FMLH 90 80 10 144 20 54 119 61 32 400
FROV110FMLH 110 100 10 164 23 70 146 77 31 560
FROV140FMLH 140 125 10 195 23 92 173 94 35 760
FROV160FMLH 160 150 6 220 26 105 197 100 40 1120
FROV225FMLH 225 200 6 275 34 154 255 152 38 2130
FROV280FMLH 280 250 5 330 40 192 312 180 41 3540
FROV315FMLH 315 300 5 380 45 227 363 215 41 5350
FROV355FMLH 350 350 5 440 49 266 416 245 44 7855
FROV400FMLH 400 400 5 491 65 310 467 285 50 12975
  • Installed with FIP QPV (d50 - d160) stubs and QRV stubs using flat gasket QHV/Y (d225 - d315), on PVC piping class PN10 or lower with type ODV flanges
  • Metal support for easy and precise centring of the valve during installation
  • Can be installed in either a vertical or horizontal position
  • Sealing system with O-ring for optimum sealing and installation without flat gaskets
