FROF - Clapet valve DN 32:400

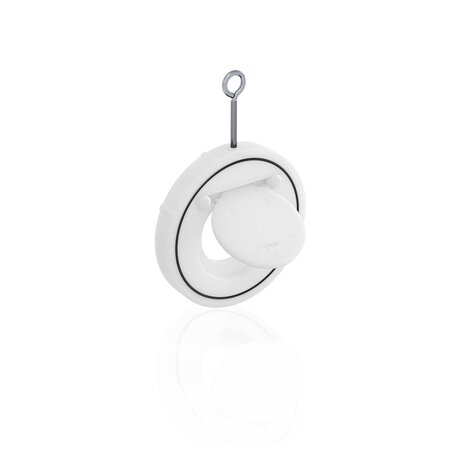

Clapet valve in PVDF without spring, ISO-DIN series.

The FR type swing check valve is designed to be directly installed between stubs and flanges according to ISO/DIN or ANSI 150 standards.

Go back Data sheet
Valvola a clapet FROF DN 32:400 senza molla in PVDF
FROF - Clapet valve DN 32:400
Valvola a clapet FROF DN 32:400 senza molla in PVDF
FROF - Clapet valve DN 32:400

EPDM

Reference d DN PN ISO/DIN Z Di A B C g
FROF040E 40 32 10 85 15 18 59 22 25 160
FROF050E 50 40 10 95 16 22 72 25 28 210
FROF063E 63 50 10 109 18 32 86 37 29 340
FROF075E 75 65 10 129 20 40 105 50 31 430
FROF090E 90 80 10 144 20 54 119 61 32 520
FROF110E 110 100 10 164 23 70 146 77 31 720
FROF140E 140 125 10 195 23 92 173 94 35 980
FROF160E 160 150 8 220 26 105 197 100 40 1440
FROF225E 225 200 8 275 34 154 255 152 38 2730
FROF280E 280 250 5 330 40 192 312 180 41 4560
FROF315E 315 300 5 380 45 227 363 215 41 6950
FROF355E 350 350 5 440 49 266 416 245 44 10131
FROF400E 400 400 5 491 65 310 467 285 50 16736

FKM

Reference d DN PN ISO/DIN Z Di A B C g
FROF040F 40 32 10 85 15 18 59 22 25 160
FROF050F 50 40 10 95 16 22 72 25 28 210
FROF063F 63 50 10 109 18 32 86 37 29 340
FROF075F 75 65 10 129 20 40 105 50 31 430
FROF090F 90 80 10 144 20 54 119 61 32 520
FROF110F 110 100 10 164 23 70 146 77 31 720
FROF140F 140 125 10 195 23 92 173 94 35 980
FROF160F 160 150 8 220 26 105 197 100 40 1440
FROF225F 225 200 8 275 34 154 255 152 38 2730
FROF280F 280 250 5 330 40 192 312 180 41 4560
FROF315F 315 300 5 380 45 227 363 215 41 6950
FROF355F 350 350 5 440 49 266 416 245 44 10131
FROF400F 400 400 5 491 65 310 467 285 50 16736

PTFE

Reference d DN PN ISO/DIN Z Di A B C g
FROF040P 40 32 10 85 15 18 59 22 25 160
FROF050P 50 40 10 95 16 22 72 25 28 210
FROF063P 63 50 10 109 18 32 86 37 29 340
FROF075P 75 65 10 129 20 40 105 50 31 430
FROF090P 90 80 10 144 20 54 119 61 32 520
FROF110P 110 100 10 164 23 70 146 77 31 720
FROF140P 140 125 10 195 23 92 173 94 35 980
FROF160P 160 150 8 220 26 105 197 100 40 1440
FROF225P 225 200 8 275 34 154 255 152 38 2730
FROF280P 280 250 5 330 40 192 312 180 41 4560
FROF315P 315 300 5 380 45 227 363 215 41 6950
FROF355P 350 350 5 440 49 266 416 245 44 10131
FROF400P 400 400 5 491 65 310 467 285 50 16736
  • Installed with FIP QPV (d50 - d160) stubs and QRV stubs using flat gasket QHV/Y (d225 - d315), on PVC piping class PN10 or lower with type ODV flanges
  • Metal support for easy and precise centring of the valve during installation
  • Can be installed in either a vertical or horizontal position
  • Sealing system with O-ring for optimum sealing and installation without flat gaskets
