F6.61.XX

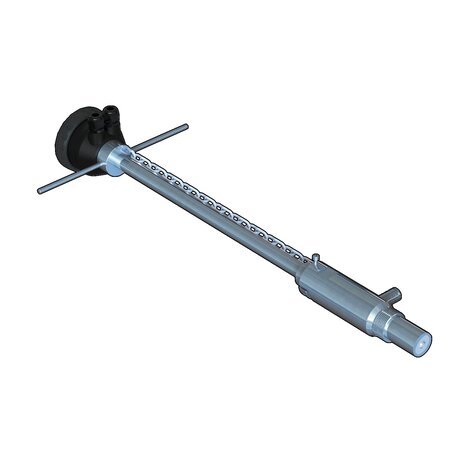

Hot Tap Magmeter Flow Sensor
FLS F6.61 Hot Tap
Insertion Magmeter Flow
Sensor is a flowmeter without
moving mechanical parts
which can be applied for the
measurement of dirty liquids
so long as they are conductive
and homogeneous. The sensor
can provide three different
options: frequency output to
be connected to FLS flow
monitors, 4-20 mA output for
long distance transmission
and PLC connection and the
new volume pulse output freely
settable. FLS F6.61 Insertion
Magmeter is provided with an
USB interface and a dedicated
software (freely downloadable
from FLS web site) which
allows to easily set by a PC
all parameters according
to specific installation
requirements.
The sensor can be assembled
in a wide dynamic range of
pressurized pipe sizes from
DN50 (2”) to DN900 (36”)
using a standard clamp saddle
and an isolation ball valve
| Reference | Version | Power supply | Lenght | Main Wetted Materials | Enclosure | Flow Rate Range | Weight (gr.) |
|---|---|---|---|---|---|---|---|
| F6.61.01 | HOT TAP INSERTION INSTALLATION | 12 - 24 VCC | 615 mm | 316L SS $ PVDF $ AISI 316L | IP65 | Da 0,05 a 8 m/s* | 6000 |
APPLICATIONS:
- Water distribution
- Leak Detection or Monitoring
- Raw water intake
- Water and waste water treatment
- Ground water remediation
- Irrigation
MAIN FEATURES:
- Adjustable sensor position
- Hot-Tap installation
- Operating parameters settable by PC interface
- Pressure intake
- Standard 1 ¼” BSP process connection
- No moving parts, no wear, maintenance free
- Flow Rate Range settable from 0.05 to 8 m/s (0.15 to 25 ft/s)
- Accurate measurement of dirty liquids
- 4-20 mA, frequency or volume pulse outputs
- Bi-directional flow measurement selectable

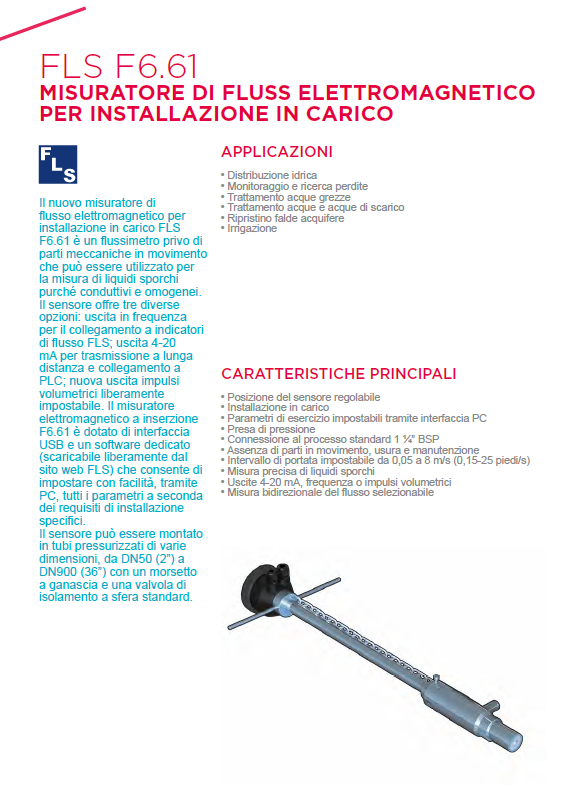

Downloads
