F3.8X.H.XX
Oval Gear Flow Sensors
Oval Gear Flow Sensors

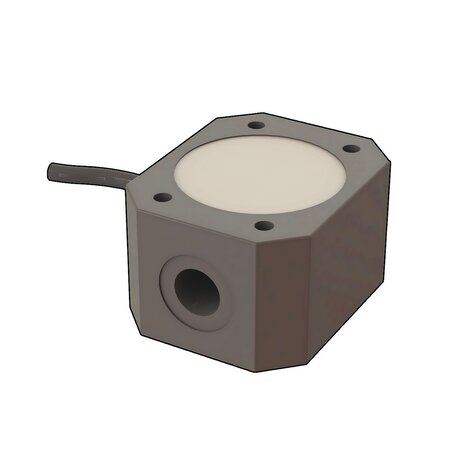

FLS Oval Gear Flow sensors F3.80 have been designed following the main industrial application requirements: high mechanical resistance and reliable performances. These sensors are suitable to measure a wide range of viscous solid-free liquids with a very high accuracy and repeatability. The sensors can be fixed to flexible or rigid pipes via 1/4” GAS threaded process connections. The construction materials, ECTFE (Halar®) or PP or Stainless steel, provide high strength and chemical resistance.
| Reference | Version | Power supply | Lenght | Main Wetted Materials | Enclosure | Flow Rate Range | Weight (gr.) |
|---|---|---|---|---|---|---|---|
| F3.81.H.01 | Hall | 5 - 24 VCC | 54 mm | PP ECTFE FKM | IP65 | From 10 to 100 l/h | 200 |
| F3.81.H.02 | Hall | 5 - 24 VCC | 54 mm | ECTFE ECTFE FKM | IP65 | From 10 to 100 l/h | 300 |
| F3.81.H.03 | Hall | 5 - 24 VCC | 54 mm | 316L SS FKM | IP65 | From 10 to 100 l/h | 800 |
| F3.82.H.01 | Hall | 5 - 24 VCC | 54 mm | PP ECTFE FKM | IP65 | From 10 to 100 l/h | 200 |
| F3.82.H.02 | Hall | 5 - 24 VCC | 54 mm | ECTFE ECTFE FKM | IP65 | From 10 to 100 l/h | 300 |
| F3.82.H.03 | Hall | 5 - 24 VCC | 54 mm | 316L SS FKM | IP65 | From 10 to 100 l/h | 800 |
APPLICATIONS:
- Chemical industry
- Laboratory plants
- Dosing systems
- Pulsating flows measurement
- High viscosity and not conductive fluid measurement
- Oil measurement
MAIN FEATURES:
- Compact dimensions
- Easy installation
- High chemical resistance
- High viscosity fluids measurement
- Low pressure loss

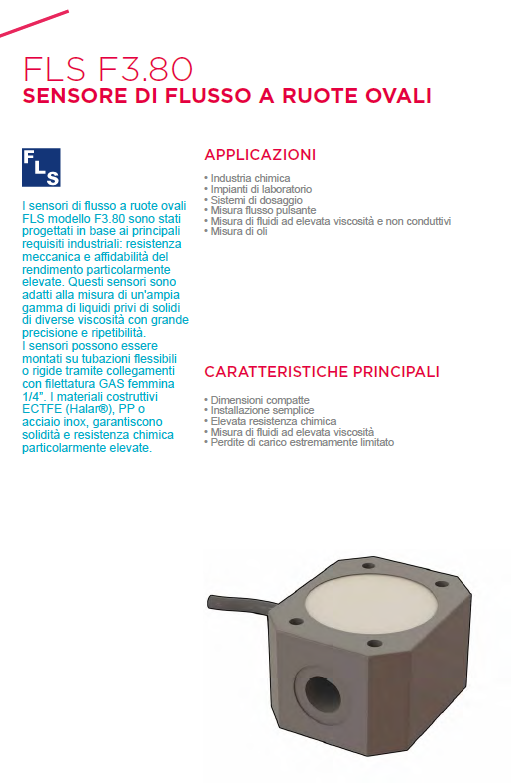

Downloads
