F/BBE-C - Union bush
Union bush, short spigot, for butt welding SDR 11 - S5.
Series of short and long fittings designed for conveying fluids under pressure for butt welding and electrofusion applications.

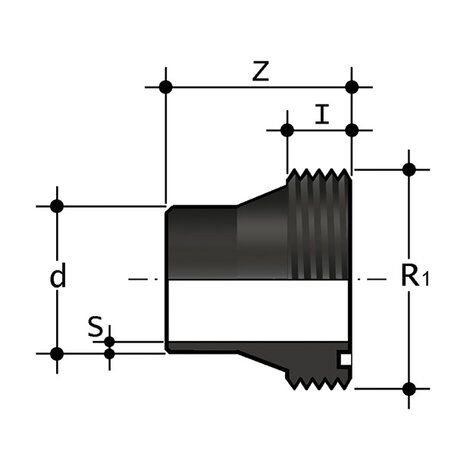

| Reference | d | Z | l | R1 | S | g |
|---|---|---|---|---|---|---|
| FBBEC11020 | 20 | 55 | 13 | 1" | 1,9 | 13 |
| FBBEC11025 | 25 | 55 | 13 | 1 1/4 " | 2,3 | 29 |
| FBBEC11032 | 32 | 55 | 14 | 1 1/2 " | 2,9 | 42 |
| FBBEC11040 | 40 | 55 | 16 | 2 " | 3,7 | 43 |
| FBBEC11050 | 50 | 55 | 18 | 2 1/4 " | 4,6 | 90 |
| FBBEC11063 | 63 | 55 | 20 | 2 3/4 " | 5,8 | 94 |
- Size range: d 12 ÷ d 800 (mm)
- Nominal pressure: SDR 17 (PN10) with water at 20 °C, SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Flanging system: ISO 7005-1, EN 1092-1, EN ISO 15494, ANSI B16.5 cl.150
- Construction criteria: UNI EN ISO 15494
- Test methods and requirements: UNI EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307,UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
- Seal material: EPDM, FKM
