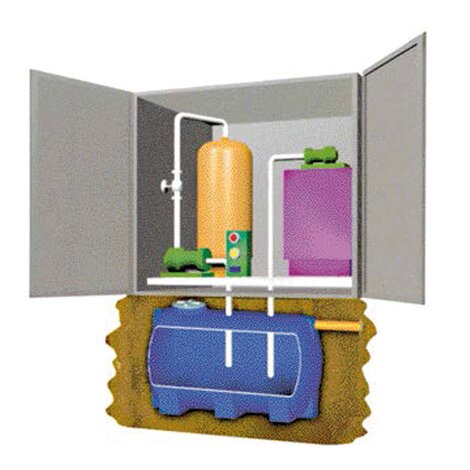

ECO BOX, Refinement system
Tertiary treatment system allowing reuse of wastewater
The tertiary treatment system Eco Box allows the reuse of waters already treated by meaning of suitable treatment systems (activated sludge etc.)
The stages of the process are the following:
- Accumulation of purified effluent;
- Disinfection with a dose of sodium hypochlorite;
- Filtration under pressure through a filter based on active sand and carbon.
| note : | Compliance with standard: 2006/42/CE - 2004/108/CE - 2006/95/CE |
| Use : | Green areas irrigation, car washing, courtyards cleaning. |

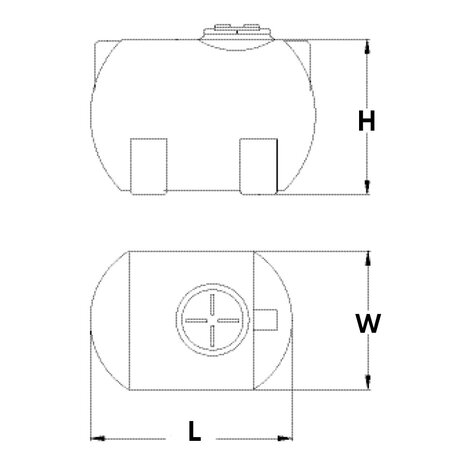

| Reference | Height H (cm) | Power (Kw) | L (cm) | Item | Users (E.I.) |
|---|---|---|---|---|---|
| 10101 | H= 108 / W= 100 | 1 | 144 | RAD1 22OV | until 50 |
| 10102 | H= 145 / W= 137 | 1 | 220 | RAD2 380V | 51-100 |
| 10103 | H= 145 / W= 137 | 1 | 220 | RAD3 38OV | 101-150 |
| 10104 | H= 180 / W= 174 | 1 | 215 | RAD4 38OV | 151-200 |
