DKUAC - DIALOCK® 2-way diaphragm valve DN 15:65

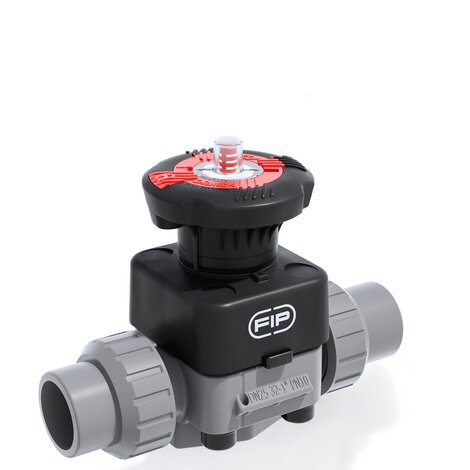

DIALOCK® diaphragm valve with female union ends for solvent welding, ASTM series.

The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body increases flow coefficient, reduce pressure drop and allows a sensitive and precise adjustment along the entire stroke of the shutter. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.

Main features:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Go back Data sheet

EPDM

Reference d DN PN B B1 E H H1 La R1 Z g
DKUAC012E 1/2" 15 10 102 25 41 143 80 90 1" 98 509
DKUAC034E 3/4" 20 10 105 30 50 167 80 108 1"1/4 115 576
DKUAC100E 1" 25 10 114 33 58 180 80 116 1"1/2 122 812
DKUAC114E 1"1/4 32 10 119 30 72 208 80 134 2" 144 945
DKUAC112E 1"1/2 40 10 149 35 79 234 120 154 2"1/2 164 1814
DKUAC200E 2" 50 10 172 46 98 272 120 184 2"3/4 195 2752

FKM

Reference d DN PN B B1 E H H1 La R1 Z g
DKUAC012F 1/2" 15 10 102 25 41 143 80 90 1" 98 509
DKUAC034F 3/4" 20 10 105 30 50 167 80 108 1"1/4 115 576
DKUAC100F 1" 25 10 114 33 58 180 80 116 1"1/2 122 812
DKUAC114F 1"1/4 32 10 119 30 72 208 80 134 2" 144 945
DKUAC112F 1"1/2 40 10 149 35 79 234 120 154 2"1/2 164 1814
DKUAC200F 2" 50 10 172 46 98 272 120 184 2"3/4 195 2752

PTFE

Reference d DN PN B B1 E H H1 La R1 Z g
DKUAC012P 1/2" 15 10 102 25 41 143 80 90 1" 98 509
DKUAC034P 3/4" 20 10 105 30 50 167 80 108 1"1/4 115 576
DKUAC100P 1" 25 10 114 33 58 180 80 116 1"1/2 122 812
DKUAC114P 1"1/4 32 10 119 30 72 208 80 134 2" 144 945
DKUAC112P 1"1/2 40 10 149 35 79 234 120 154 2"1/2 164 1814
DKUAC200P 2" 50 10 172 46 98 272 120 184 2"3/4 195 2752
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
    • reduction in the tightening torque of the screws fixing the actuator to the valve body
    • reduced mechanical stress on all valve components (actuator, body and diaphragm)
    • easy to clean valve interior
    • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
    • operating torque reduction
