DKDC - DIALOCK® 2-way diaphragm valve DN 15:65

DIALOCK® diaphragm valve with male ends for solvent welding, metric series.

The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body increases flow coefficient, reduce pressure drop and allows a sensitive and precise adjustment along the entire stroke of the shutter. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.

Main features:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Go back Data sheet

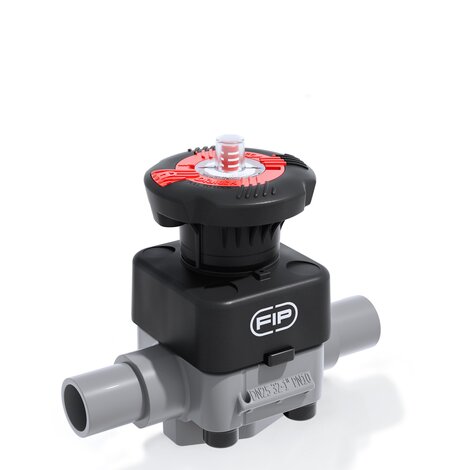

Render della valvola a membrana a 2 vie DIALOCK® DKDC - DN 15:65 in PVC-C
DKDC - DIALOCK® 2-way diaphragm valve DN 15:65
Render della valvola a membrana a 2 vie DIALOCK® DKDC - DN 15:65 in PVC-C
DKDC - DIALOCK® 2-way diaphragm valve DN 15:65

EPDM

Reference d DN PN B B1 H H1 L g
DKDC020E 20 15 10 102 25 124 80 16 466
DKDC025E 25 20 10 105 30 144 80 19 491
DKDC032E 32 25 10 114 33 154 80 22 696
DKDC040E 40 32 10 119 30 174 80 26 743
DKDC050E 50 40 10 149 35 194 120 31 1574
DKDC063E 63 50 10 172 46 224 120 38 2310
DKDC075E 75 65 10 172 46 284 120 44 2430

EPDM

Reference d DN PN B B1 H H1 L g
DKDC020E0SF 20 15 10 102 25 124 80 16 466
DKDC025E0SF 25 20 10 105 30 144 80 19 491
DKDC032E0SF 32 25 10 114 33 154 80 22 696
DKDC040E0SF 40 32 10 119 30 174 80 26 743
DKDC050E0SF 50 40 10 149 35 194 120 31 1574
DKDC063E0SF 63 50 10 172 46 224 120 38 2310
DKDC075E0SF 75 65 10 172 46 284 120 44 2430

FKM

Reference d DN PN B B1 H H1 L g
DKDC020F 20 15 10 102 25 124 80 16 466
DKDC025F 25 20 10 105 30 144 80 19 491
DKDC032F 32 25 10 114 33 154 80 22 696
DKDC040F 40 32 10 119 30 174 80 26 743
DKDC050F 50 40 10 149 35 194 120 31 1574
DKDC063F 63 50 10 172 46 224 120 38 2310
DKDC075F 75 65 10 172 46 284 120 44 2430

PTFE

Reference d DN PN B B1 H H1 L g
DKDC020P 20 15 10 102 25 124 80 16 466
DKDC025P 25 20 10 105 30 144 80 19 491
DKDC032P 32 25 10 114 33 154 80 22 696
DKDC040P 40 32 10 119 30 174 80 26 743
DKDC050P 50 40 10 149 35 194 120 31 1574
DKDC063P 63 50 10 172 46 224 120 38 2310
DKDC075P 75 65 10 172 46 284 120 44 2430

PTFE

Reference d DN PN B B1 H H1 L g
DKDC020P0SF 20 15 10 102 25 124 80 16 466
DKDC025P0SF 25 20 10 105 30 144 80 19 491
DKDC032P0SF 32 25 10 114 33 154 80 22 696
DKDC040P0SF 40 32 10 119 30 174 80 26 743
DKDC050P0SF 50 40 10 149 35 194 120 31 1574
DKDC063P0SF 63 50 10 172 46 224 120 38 2310
DKDC075P0SF 75 65 10 172 46 284 120 44 2430
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
    • reduction in the tightening torque of the screws fixing the actuator to the valve body
    • reduced mechanical stress on all valve components (actuator, body and diaphragm)
    • easy to clean valve interior
    • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
    • operating torque reduction
